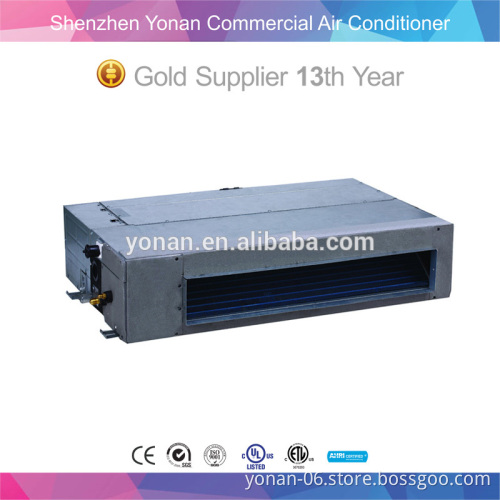

60000Btu Cooling Only Air Conditioning Duct Split Air Conditioner

60000Btu Cooling Only Air Conditioning Duct Split Air Conditioner           Feature 1.  60000Btu duct type air conditioner
2.  Large capacities for large-sized building
3.  Easy installation
4.  A sense of responsibility
5.  Low outdoor temperature used
6.  Designed for high outdoor temperature use     Specification

Power supply		V-ph-Hz	380~420-3-50
Cooling	Capacity	Btu/h	60000
	Input	W	5861
	EER	W/W	2.73
Heating	Capacity	Btu/h	/
	Input	W	/
	COP	W/W	/
Indoor fan motor	Model		YSK180-4P
	Qty		1
	Input	W	355/223/173
	Capacitor	uF	10uF/450V
	Speed(Hi/Med/Lo)	r/min	1080/830/710
Indoor coil	Number of rows		4
	Tube pitch(a)*row pitch(b)	mm	21x13.37
	Fin spacing	mm	1.5
	Fin type		Hydrophilic aluminium
	Tube outside dia.and type	mm	Φ7,Inner grooved tube
	Coil length * height * width	mm	1030x378x53.48
	Number of circuits		8
Indoor air flow (Hi/Med/Lo) (No duct)		m3/h	3150/2510/1990
Indoor external static pressure (Hi)		Pa	100
Indoor noise level (Hi/Med/Lo)		dB(A)	50/42/37
Throttle type			Throttle valve
Indoor unit	Dimension (WxDxH)	mm	1200x865x300
	Packing(WxDxH)	mm	1385x920x373
	Net/Gross weight	kg	48/56
Design pressure		MPa	2.94/1.0
Drainage water pipe diameter		mm	ODΦ25
Refrigerant piping	Liquid side/ Gas side	mm	Φ9.52/Φ19(3/8"/3/4")
Controller			KJR-10B/DP(T)-E
Operation temperature	Cooling	℃	17~32
	Heating	℃	/
