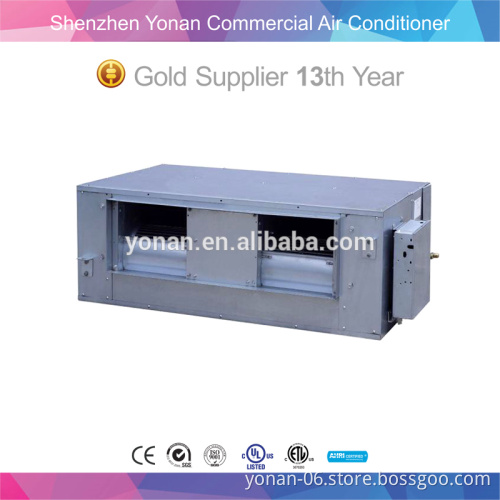

T1 36000Btu High Static Pressure Ducted Air Conditioner

T1 36000Btu High Static Pressure Ducted Air Conditioner       Feature 1.   T1 working condition
2.   36000btu cooling only high static pressure duct
3.   The fan motor is demountable, which is to install and maintain
4.   The drain pump can lift the condending water up to 750mm upmost
5.   Timers
6.   Automatic restart function
7.   Independent dehumidification
8.   Low ambient cooling     Specification

Power supply		V- Ph-Hz	380~415-3-50
Cooling	Capacity	Btu/h	36000
	Input	W	4008
	EER	W/W	2.63
Heating	Capacity	Btu/h	/
	Input	W	/
	COP	W/W	/
Indoor fan motor	Model		YDK200-4F
	Qty		1
	Input	W	500/460/345
	Capacitor	uF/ V	15uF/370-450V
	Speed (Hi/Mid/Lo)	r/min	1060/980/820
Indoor coil	Number of rows		3
	Tube pitch(a)×row pitch(b)	mm	25.4×22
	Fin spacing	mm	1.6
	Fin type		Hydrophilic aluminum
	Tube outside diameter .and type	mm	Φ9.5,Inner grooved tube
	Coil length×height×width	mm	700×356×66
	Number of circuits		7
Indoor air flow (Hi/Med/Lo) (No duct)		m3/h	2400/2200/2000
Indoor external static pressure (Hi)		Pa	150
Indoor noise level (Hi/Med/Lo)		dB(A)	51/50/46
Throttle type			Throttle valve
Indoor unit	Dimension (W×D×H)	mm	856x691x400
	Packing (W×D×H)	mm	1090x768x440
	Net/Gross weight	kg	47/56
Design pressure		MPa	2.6/1.0(202070590149)
Drainage water pipe dia			ODΦ25
Refrigerant piping	Liquid side/ Gas side	mm	Φ9.52/Φ19(3/8"/3/4")
Controller			KJR-12B/DP(T)-E
Operation temperature	Cooling	℃	17~32
	Heating	℃	/
