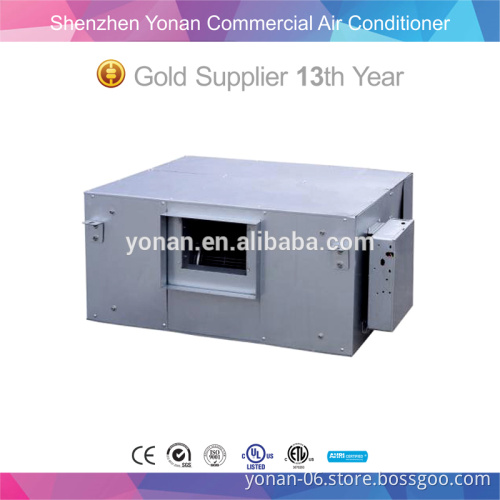

24000Btu High Static Pressure Ducted Air Conditioners

24000Btu High Static Pressure Ducted Air Conditioners         Feature 1.  High air volume, high static pressure, high capacity.
2.  High-pressure centrifugal fans.
3.  Easy to clean and change the air filter.
4.  Safe factory-installed electric heater is optional.
5.  Flexible control, remote controller and wired controller are optional.
6.  Standard extended drainage pan for protecting your ceiling better.
7.  Return air plenum and filter are standard.
8.  Four-speed motor with one reserved for more choice .
9.  Pipe connection from left or right can be selected (in factory).
10.220--240V/1Ph/50Hz power supply is standard, 208-230V/1Ph/60Hz can be customized.   Specification

Power supply		V- Ph-Hz	220~240-1-50
Cooling	Capacity	W	7100(3400~8660)
	Input	W	2220(780~3230)
	Current	A	9.8(3.4~14.1)
	EER	W/W	3.31
	AEER	W/W	3.27
Heating	Capacity	W	7500(4400~10200)
	Input	W	2250(900~3330)
	Current	A	10.0(3.9~14.5)
	COP	W/W	3.78
	ACOP	W/W	3.28
Cooling(test data)	Capacity	W	7210
	Input	W	2121
	Current	A	9.41
	AEER	W/W	3.351
	SRI	\	2.20
	Non-operational Power	W	9.0
heating(test data)	Capacity	W	8494
	Input	W	2152
	Current	A	9.55
	ACOP	W/W	3.881
	SRI	\	3.262
	Non-operational Power	W	10.80
Indoor fan motor	Model		WZDK150-38GS-W
	Qty		1
	Output	W	150
	Capacitor	uF/ V	/
	Speed (Hi/Mid/Lo)	r/min	1050/880/750
Indoor coil	Number of rows		4
	Tube pitch(a)×row pitch(b)	mm	21x13.37
	Fin spacing	mm	1.3
	Fin type		Hydrophilic aluminium
	Tube outside diameter .and type	mm	Φ7,inner grooved tube
	Coil length×height×width	mm	990x252x53.48
	Number of circuits		6
Indoor air flow (Hi/Med/Lo) (No duct)		m3/h	1450/1200/1000
ESP	Rated	Pa	25
	Range	Pa	0-100
Indoor noise level (Hi/Med/Lo)		dB(A)	43/40/34
Indoor unit	Dimension (W×D×H)	mm	1100×525×270
	Packing (W×D×H)	mm	1335x555x320
	Net/Gross weight	kg	28.5/33
Design pressure		MPa	4.2/1.5
Drainage water pipe dia			ODΦ25
Refrigerant piping	Liquid side/ Gas side	mm	Φ9.52/Φ15.9(3/8"/5/8")
Controller			KJR-12B/DP(T)-E
Operation temperature	Cooling	℃	17~32
	Heating	℃	0~30
Qty’per 20’ /40’ /40'HQ			121/254/295
