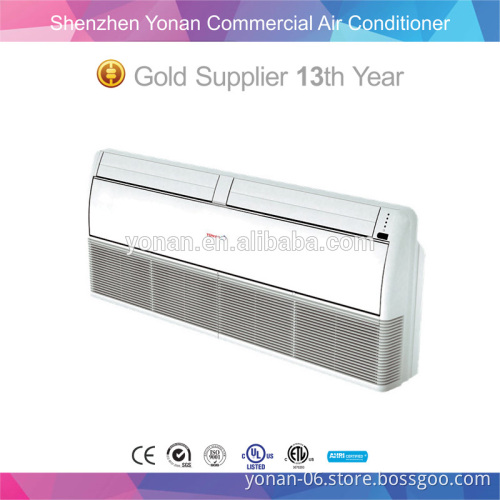

12000Btu Heating And Cooling Floor Ceiling Air Conditioner

12000Btu Heating And Cooling Floor Ceiling Air Conditioner       Feature 1. Power supply: 220~240V, 50Hz 2. R410a friendly refrigerant 3. Modern compact desigh with quiet operation 4. Adopted GMCC Brand Compressor 5. High Effcient Cooling and heating   Parameter

Power supply		V-ph-Hz	220~240-1-50
Cooling	Capacity	Btu/h	12000
	Input	W	1031
	Current	A	4.71
	EER	W/W	3.41
Heating	Capacity	Btu/h	13000
	Input	W	1050
	Current	A	4.8
	COP	W/W	3.63
Indoor air flow(Hi/Med/Lo)		m3/h	584/518/463
Indoor noise level (sound pressure)(Hi/Med/Lo)		dB(A)	40/37/33
Throttle type			/
Indoor unit	Dimension (WxDxH)	mm	990x660x203
	Packing (WxDxH)	mm	1090x745x297
	Net/Gross weight	kg	25/30
Design pressure		MPa	4.2/1.5
Drainage water pipe diameter		mm	ODΦ25
Refrigerant piping	Liquid side/Gas side	mm	Φ6.4/Φ12.7
Controller			RG51Q1/BGE
Operation temperature	Cooling	°C	≥17
	Heating	°C	≤30

Power supply		V-ph-Hz	220~240-1-50
Max. input consumption		W	2200
Max. input current		A	10
Compressor	Model		DA108X1C-20FC3
	Type		Rotary
	Brand		GMCC
	Capacity	Btu/h	10918
	Input	W	855
	Rated current(RLA)	A	5.3
	Locked rotor Amp(LRA)	A	/
	Thermal protector position		/
	Capacitor	μF	/
	Refrigerant oil	ml	480
Outdoor air flow		m3/h	2500/1600
Outdoor noise level (sound pressure)		dB(A)	54/47
Throttle type			Capillary
Outdoor unit	Dimension(WxDxH)	mm	762x282x593
	Packing(WxDxH)	mm	887x355x645
	Net/Gross weight	kg	39/42
Refrigerant type/Quantity	Type		R410A
	Charged volume	kg	1.13
Design pressure		MPa	4.2/1.5
Refrigerant piping	Liquid side/ Gas side	mm	φ6.4φ12.7
	Max. pipe length	m	10
	Max. difference in level	m	5
Ambient temperature	Cooling	°C	0~50
	Heating	°C	-15~24
