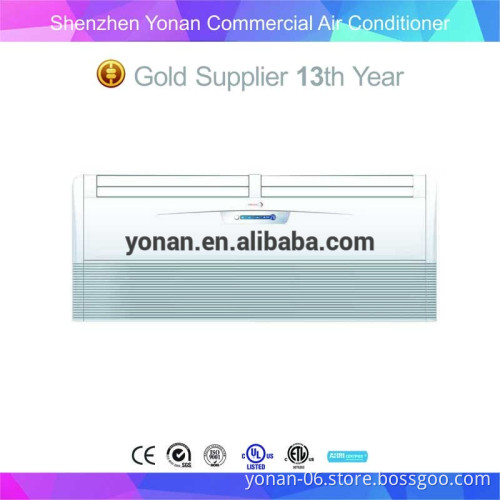

T3 60Hz 60000Btu Floor Ceiling Air Conditioner

T3 60Hz 60000Btu Floor Ceiling Air Conditioner         Feature 1.   The unit can be installed either horizontally on the ceiling or vertically against the wall.
2.   The unit has auto horizontal swing and auto vertical seing function
3.   Auti-cold air function
4.   Auto restart function
5.   Auto defrosting
6.   Quiet desing
7.   Sleep mode
8.   Independent dehumidification     Specification

Power supply		V-ph-Hz	220~230-1-60
Cooling	Capacity	Btu/h	60000
	Input	W	5310
	EER	W/W	2.52
Heating	Capacity	Btu/h	/
	Input	W	/
	COP	W/W	/
Indoor fan motor	Model		(YSK85-4B)×2
	Qty		2
	Input	W	(174/157/144)×2
	Capacitor	uF	(6.5UF/450V)×2
	Speed(Hi/Med/Lo)	r/min	1400/1220/1090
Indoor coil	Number of rows		3
	Tube pitch(a)x row pitch(b)	mm	25.4x22
	Fin spacing	mm	1.7
	Fin type		Hydrophilic aluminium
	Tube outside dia.and type	mm	Φ9.52,Inner grooved tube
	Coil length x height x width	mm	1360x254x66
	Number of circuits		5
Indoor air flow(Hi/Med/Lo)		m3/h	2450/2220/1968
Indoor noise level (sound pressure)(Hi/Med/Lo)		dB(A)	54/50/46
Throttle type			Throttle valve
Indoor unit	Dimension (WxDxH)	mm	1670x680x240
	Packing  (WxDxH)	mm	1765x761x325
	Net/Gross weight	kg	60/68
Design pressure		MPa	2.94/1.0
Drainage water pipe diameter		mm	ODΦ25
Refrigerant piping	Liquid side/Gas side	mm	Φ9.52/Φ19(3/8"/3/4")
Controller			RG51Q1/BGE
Operation temperature	Cooling	℃	17~32
	Heating	℃	/
