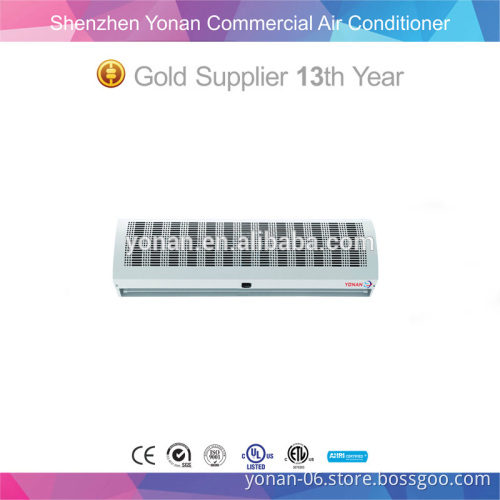

Metal Hosing Door Cross Flow Air Curtain With ARC Shaped Design
  • Metal Hosing Door Cross Flow Air Curtain With ARC Shaped Design
Metal Hosing Door Cross Flow Air Curtain With ARC Shaped Design

Metal Hosing Door Cross Flow Air Curtain With ARC Shaped Design

Delivery Time:
55 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
Metal Hosing  Door Cross Flow Air Curtain With Arc Shaped Design       Feature Full metal housing with durable powder s[pray coating Unique arc design and slim body High efficiency and low noise Convenient operation, easy to adjust air pattern Multiple width available: 600, 900, 1000, 1200, 1500, 1800, 2000mm
Voltage / Frequency Diameter Of Wheel Input Power Air Velocity Air Volume Noise Net Weight Gross Weight Dimension Carton Size  Installation Height
(mm) (w) (m/s) (m3/h) (dB) (kg) (kg) (mm) (mm) (m)
220V / 50Hz 120 120 11 800 ≤42 9.4 10.4 600x220x195 660x280x250 2.3-3
220V / 51Hz 120 150 11 1200 ≤45 12.8 14.3 900x220x196 960x280x250 2.3-3
220V / 52Hz 120 180 11 1350 ≤45 13.8 15.5 1000x220x197 1060x280x250 2.3-3
220V / 53Hz 120 180 11 1700 ≤47 15.7 17.7 1200x220x198 1260x280x250 2.3-3
220V / 54Hz 120 220 11 2100 ≤47 19.9 22.4 1500x220x199 1560x280x250 2.3-3
220V / 55Hz 120 280 11 2500 ≤50 23 26 1800x220x200 1860x280x250 2.3-3
220V / 56Hz 120 320 11 2750 ≤51 24.5 28 2000x220x201 2060x280x250 2.3-3
220V / 57Hz 120 165 11~12 1260 ≤47 18 19.5 900x220x202 960x320x280 3-3.5
220V / 58Hz 120 180 11~12 1930 ≤49 21.8 23.8 1200x220x203 1260x320x281 3-3.5
220V / 59Hz 120 240 11~12 2350 ≤50 27 29.5 1500x220x204 1560x320x282 3-3.5
