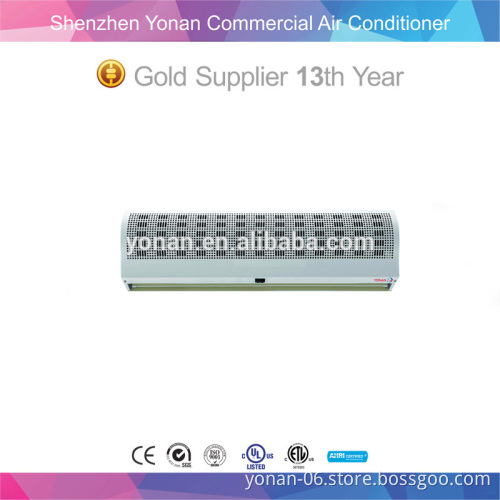

900~2000mm Cyclone Cross Flow Air Curtain

900~2000mm Cyclone Cross Flow Air Curtain       Feature Slim all meteal housing with esthetic curved design Full metal shell, and minimal maintenance Easy intallation and cleaning Specification

Voltage / Frequency	Diameter of Wheel	Input Power	Air Velocity	Air Volume	Noise	Net Weight	Gross Weight	Dimension	Carton Size	Installation Height
	(mm)	(w)	(m / s)	(m3 / h)	(dB)	(kg)	(kg)	(mm)	(mm)	(m)
220V / 50Hz	120	150	11	1200	≤43	11.5	13	900x215x200	960x270x250	2.3-3
220V / 50Hz	120	150	11	1350	≤43	12.1	13.8	1000x215x200	1060x270x250	2.3-3
220V / 50Hz	120	180	11	1700	≤44	14.5	16.5	1200x215x200	1260x270x250	2.3-3
220V / 50Hz	120	220	11	2100	≤46	17.2	19.7	1500x220x200	1560x270x250	2.3-3
220V / 50Hz	120	280	11	2500	≤50	20	23	1800x220x200	1860x270x250	2.3-3
220V / 50Hz	120	320	11	2750	≤51	21.5	25	2000x220x200	2060x270x250	2.3-3
