Hot sell Openbox S4 with Linux operation system;capabilities such as Youtube, web browser and much more

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications Openbox with the S4 Full HD viewers can utilize the full range of multimedia capabilities such as Youtube,web browser and so on.

Linux operation system Openbox S4

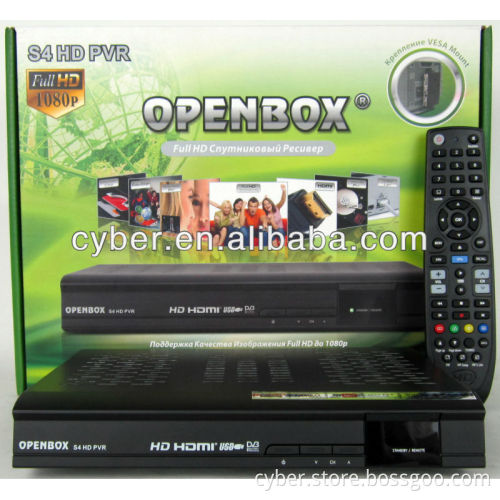

Front panel & rear panel picture:
Sample Price:USD 65/piece Factory price (For your 200pcs )
Specification:
Openbox with the S4 Full HD viewers can utilize the full range of multimedia capabilities such as Youtube, web browser and much more.
Powerful STi7110 decoder to MPEG4/MPEG2, HD / SD
The possibility of simultaneous recording of up to three channels in HDTV quality
Time-Shift mode, activated automatically
Stable operation of all functions of PVR
Advanced Mode "Picture in Picture" (PIP)
Video output quality up to 1080p including
Support for storage USB 2.0 (one port)
Analog outputs CVBS (RCA) and SCART (RGB)
The presence of CI interface
Playing movies in formats AVI, MKV
View JPEG photos in high resolution up to 1080p
Convenient music player MP3
on YouTube
Web-browser - to view the Internet websites on your TV
Compatible with USB mice and keyboards
Support for USB-WiFi module (dongle) to connect to wireless networks
Ability to install additional plug-ins (Add-ons)
Mode "Blind Search" transponders
Maximum ease of user menu
Complete qualitative and localization for the CIS market

Main System
Main processor: ST Sti7110 200 MHz
FLASH size: 32 Mbytes
DDRAM size: 256 Mbytes
EPROM size: 256 Bytes
Tuner & Channel Decoder
Input connector: F-Type, IEC 169-24 Female
Loop through out: F-Type, IEC 169-24 Female
Frequency Range: 950 MHz~ 2150 MHz
Input impedance: 75 Ω Type unbalanced
Signal level: -65 ~ -25 dBm
LNB Power: 13-18V Max. 400 mA Overload Protection
22kHz Tone: 22 kHz ± 2 kHz Amplitude: 0,6 ±0,2 V
DiSEqC Control: V1.0/1.1/1.2/USALS Compatible
Demodulation: 8PSK/QPSK
Input Symbol Rate: 2~67.5 Ms/s (QPSK of DVB-S2), 2~52.5 Ms/s (8PSK of DVB-S2)
FEC Decoder: 1/2, 2/3, 3/4, 5/6, 7/8 with Constraint Length K=7(DVB-S)
3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10(DVB-S2)
MPEG Transport Stream A/V Decoding
Transport Stream: H.264(MPEG-4 part 10, MPEG-4/AVC and H26L)
MPEG-II ISO/IEC 13818-2/11172-2
MPEG Profile level: MPEG-4/AVC MP@L4, MPEG-II MP@HL
Input Rate: Max. 80Mbit/s
Video Formats: 4:3 Letter Box, 4:3 Pan Scan, 16:9.
Video Resolution: 720576i, 720576p, 720480i, 720480p, 1280720p, 19201080i, 1920*1080p
Audio Decoding: Dolby Digital, MPEG Layer 1, 2 and 3
Audio Mode: Stereo/Join Stereo/Mono, Dolby AC-3
Sampling Rate: 32 kHz, 44,1 kHz, 48 kHz(According to input)
Audio/Video & Data In/OUT
RCA: CVBS Video Output, Audio L, R Output
HDMI: Video&Audio Output
OPTIC: AC-3 Dolby Digital (SPDIF)
RS232C: 9 pin D-SUB (Male) Type, Transfer rate 115.2Kbps
USB: 1 USB 2.0 Host Support
Ethernet: TX 10/100M Base
IR extension: Removable IR Extension
Front and Rear Panel
Buttons: 3 Buttons (Standby, CH+, CH-)
Slots: 1 SmartCard Reader and 1 Comon interface Reader
Indicators: 1 LED (Standby, Power and Remote: DUAL TYPE)
Power Supply
Input Voltage: AC 100~ 250V 50/60Hz
Type: ADAPTER(12V 2A)
Power Consumption: Max. 24W
Protection: Separate Internal Fuse and Lighting protection
Physical Specification
Size: 22035145 mm
Weight: 0.6 kg
Operating Temperature: 0 °C~ 45 °C
Storage Temperature: -10 °C~70 °C

Linux operation system Openbox S4

Front panel & rear panel picture:

Sample Price:USD 65/piece Factory price (For your 200pcs )

Specification:

Openbox with the S4 Full HD viewers can utilize the full range of multimedia capabilities such as Youtube, web browser and much more.

Powerful STi7110 decoder to MPEG4/MPEG2, HD / SD

The possibility of simultaneous recording of up to three channels in HDTV quality

Time-Shift mode, activated automatically

Stable operation of all functions of PVR

Advanced Mode "Picture in Picture" (PIP)

Video output quality up to 1080p including

Support for storage USB 2.0 (one port)

Analog outputs CVBS (RCA) and SCART (RGB)

The presence of CI interface

Playing movies in formats AVI, MKV

View JPEG photos in high resolution up to 1080p

Convenient music player MP3

on YouTube

Web-browser - to view the Internet websites on your TV

Compatible with USB mice and keyboards

Support for USB-WiFi module (dongle) to connect to wireless networks

Ability to install additional plug-ins (Add-ons)

Mode "Blind Search" transponders

Maximum ease of user menu

Complete qualitative and localization for the CIS market

Main System

Main processor: ST Sti7110 200 MHz

FLASH size: 32 Mbytes

DDRAM size: 256 Mbytes

EPROM size: 256 Bytes

Tuner & Channel Decoder

Input connector: F-Type, IEC 169-24 Female

Loop through out: F-Type, IEC 169-24 Female

Frequency Range: 950 MHz~ 2150 MHz

Input impedance: 75 Ω Type unbalanced

Signal level: -65 ~ -25 dBm

LNB Power: 13-18V Max. 400 mA Overload Protection

22kHz Tone: 22 kHz ± 2 kHz Amplitude: 0,6 ±0,2 V

DiSEqC Control: V1.0/1.1/1.2/USALS Compatible

Demodulation: 8PSK/QPSK

Input Symbol Rate: 2~67.5 Ms/s (QPSK of DVB-S2), 2~52.5 Ms/s (8PSK of DVB-S2)

FEC Decoder: 1/2, 2/3, 3/4, 5/6, 7/8 with Constraint Length K=7(DVB-S)

3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10(DVB-S2)

MPEG Transport Stream A/V Decoding

Transport Stream: H.264(MPEG-4 part 10, MPEG-4/AVC and H26L)

MPEG-II ISO/IEC 13818-2/11172-2

MPEG Profile level: MPEG-4/AVC MP@L4, MPEG-II MP@HL

Input Rate: Max. 80Mbit/s

Video Formats: 4:3 Letter Box, 4:3 Pan Scan, 16:9.

Video Resolution: 720*576i, 720*576p, 720*480i, 720*480p, 1280*720p, 1920*1080i, 1920*1080p

Audio Decoding: Dolby Digital, MPEG Layer 1, 2 and 3

Audio Mode: Stereo/Join Stereo/Mono, Dolby AC-3

Sampling Rate: 32 kHz, 44,1 kHz, 48 kHz(According to input)

Audio/Video & Data In/OUT

RCA: CVBS Video Output, Audio L, R Output

HDMI: Video&Audio Output

OPTIC: AC-3 Dolby Digital (SPDIF)

RS232C: 9 pin D-SUB (Male) Type, Transfer rate 115.2Kbps

USB: 1 USB 2.0 Host Support

Ethernet: TX 10/100M Base

IR extension: Removable IR Extension

Front and Rear Panel

Buttons: 3 Buttons (Standby, CH+, CH-)

Slots: 1 SmartCard Reader and 1 Comon interface Reader

Indicators: 1 LED (Standby, Power and Remote: DUAL TYPE)

Power Supply

Input Voltage: AC 100~ 250V 50/60Hz

Type: ADAPTER(12V 2A)

Power Consumption: Max. 24W

Protection: Separate Internal Fuse and Lighting protection

Physical Specification

Size: 220*35*145 mm

Weight: 0.6 kg

Operating Temperature: 0 °C~ 45 °C

Storage Temperature: -10 °C~70 °C
