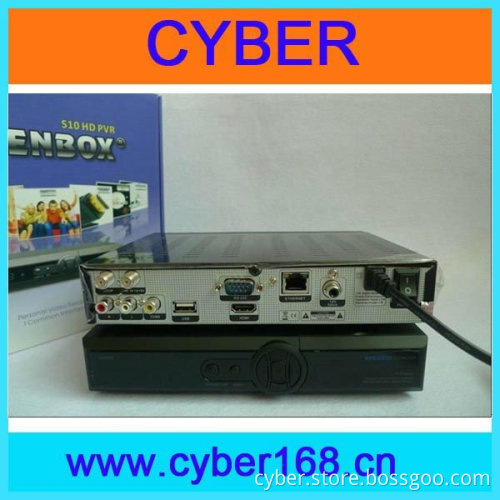

Openbox S10 HD PVR receiver HDMi Sharing dvb-s2 working worldwide

Specifications This receiver has all the functions of DM box ; It is the cheapest HD receiver; Can be used around the world;

1.MAIN FEATURES 1). This receiver has all the functions of DM box ; It is the cheapest HD receiver; Can be used around the world; 2). Linux Operative System ; HD CPU;Available tuners: DVB-S2; 3). Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech, selectable--and Language can be increased in the future 4) support CCCAM,NEWCAM,MGCARD NEWCS sharing     OPENBOX S10+ HD+ PVR +1CA1CI
10/100Mbit Ethernet Interface
1) 300 MHz MIPS Processor - Linux Operating System
2) Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
3) Fully compliant MPEG-2 MP@HL & MP@ML;
4) Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);
5) SCPC & MCPC receivable from C/Ku band satellites;
6) multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)
7) NIT search supported;

8) Support MHEG-5;
9) Support HDMI 1.3;
10) Support PVR(store in USB disk);
11) Multimedia files playback(by USB);
12) Support Electronic Program Guide(EPG) for 7 days;
13) Teletext and subtitle out through OSD;
14) Support multi-lingual DVB subtitle and teletext;
15) Automatic and manual channel scan options;
16) automatic service scan
17) channel-change time < 1 second
18) OSD in many languages and skin-support
19) Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish,
MORE SPECIFICATIONS ABOUT OPENBOX S10 HD PVR RECEIVER
DVB-S2
 Input Frequency:950~2150MHz
Loop Out Frequency:950~2150MHz
Input Level:-65~-25dBm
Input Impedance:75¦¸
LNB Power: Auto/14v/18v/OFF, Imax = 500mA
Video decoder
 Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Audio decoder
 Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output digital
 Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz

S/PDIF-Output optical, Toslink
Video parameter
 Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart
 Output: FBAS, RGB, S-Video
Serielle Interface RS 232
 Typ RS232 bidirectional
Bit rate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
Ethernet
 10/100 MBit compatible interface
Function: Update of Firmware
USB
 1 x USB 2.0 Host ,PVR
LNB power and polarisation per tuner
 LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position
 DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
External PSU
 Input:110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 3,0A
Physical specification
 Ambient Temperature +15 °C...+35 °C
Humidity < 80%
Size (W x D x H): 300 mm x 220 mm x 56 mm
Weight: 1,8 kg  without HDD
Power
 AC input range:100-240VAC 50/60Hz
Power Consumption (Standby): Max. 10W (<1 W)   3.SPECIFICATIONS

DVB-S2	Input Frequency:950~2150MHz Loop Out Frequency:950~2150MHz Input Level:-65~-25dBm Input Impedance:75¦¸ LNB Power: Auto/14v/18v/OFF, Imax = 500mA
Video decoder	Video Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device
Audio decoder	Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output digital	Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, Toslink
Video parameter	Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard
TV-Scart	Output: FBAS, RGB, S-Video
Serielle Interface RS 232	Typ RS232 bidirectional Bit rate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware
Ethernet	10/100 MBit compatible interface Function: Update of Firmware
USB	1 x USB 2.0 Host ,PVR
LNB power and polarisation per tuner	LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position	DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control
External PSU	Input:110-240V AC / 50-60Hz / 0,6A Output: 12V = / 3,0A
Physical specification	Ambient Temperature +15 °C...+35 °C Humidity < 80% Size (W x D x H): 300 mm x 220 mm x 56 mm Weight: 1,8 kg  without HDD
Power	AC input range:100-240VAC 50/60Hz Power Consumption (Standby): Max. 10W (<1 W)
