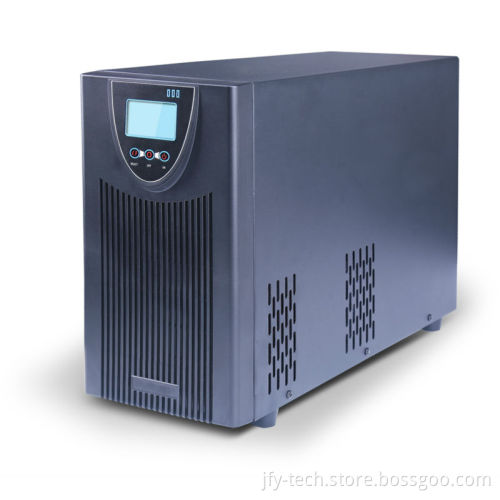

0.5kva-7kva Off-grid solar inverter for Home Power System

Features     Integrated with solar charger, AC charger (optional), inverter, AC bypass switch, transformer, PV& battery terminals, protection breakers and LCD display     MPPT technology, offers wide input voltage, stable charging voltage and current, reduce the investment of 20~30% panels compared with PWM solar charger     Transformer design allows withstanding high inrush current, supporting inductive loads such as pump, refrigerator, air conditioner etc.     Automatically switch to utility power or start up the generator to charge the battery, and supply electricity to the loads when the sun is not available or battery is too low.     Pure sine wave, Full protect function (overload, short circuit etc.) and advance battery management technology     Specification

MODEL (XPI)	0.5K	0.7K	1.0K	1.5K	2.0K	3.0K	4.0K	5.0K	6.0K	7.0K
	XPI _._KVA-DMS/DML/ DPS/DPL/UMS/UML/UPS/UPL/NMS/NML/NPS/NPL
Battery Voltage(dc)	24V			48V			96V
Battery Configuration	Inside max. 200AH*2pcs			Inside max. 200AH*4pcs			External
	or External			or External
Output Power	350W	500W	700W	1.0KW	1.5KW	2.0KW	3.0KW	3.5KW	4.2KW	5.0KW
Solar Controller
Charger Type	PWM/MPPT			MPPT
Max PV Input Power	900/1440W			2880W			5760W
PV Input Voltage Range	30-50/30-90Vdc			70-150Vdc			150-300Vdc
Max Solar Charge Current	30A/50A			50A
Float Charge Voltage	27.2Vdc			54.5Vdc				109Vdc
Equalization Charge Voltage	28.8Vdc			57.6Vdc				115.2Vdc
AC  Input
AC Input Voltage	175-270Vac(50Hz)/90-135Vac(60Hz)
AC Input Frequency	50/60Hz±3%
Charging Current	Standard:10A  Max.:15A
AC  Output
AC Output Voltage	110/120/127Vac±3%; 220/230Vac±3%
AC Output Frequency	50/60Hz±1%
Crest Factor	3:01
Output Wave	Pure Sine Wave
Efficiency	>80.0%		>85.0%
System
Display	LED/LCD
Information	PV Status, Battery Capacity, AC Input Voltage, AC Output Voltage, Load
Protections	Overload, Low Voltage, SPD,Overtemperature,shortcircuit etc
Overload Capability	100-120% 30s; 120-150% 10S; >150% 5s; short circuit, 10ms
Cooling	Fan Cooling
Communication	RS232
Noise	< 60dB
Operation Temperature	0-40°C
Storage Temperature	-15~+50°C
Humidity	0-90%
Altitude	0-3000m(Above 1000m, derated power 1% per 100m)
Storage Temperature	-15~+50°C
Dimension	365*575*980/			615*575*980/	615*572*980/		680*380*565
(W×D×H mm)Bat. In/Out	488*212*310			603*325*470	603*325*47
Weight (Kg)Bat. In/Out	148/8	149/9	150/10	281/11	289/19	291/22	35	40	45	54
Specification is subject to change without prior notice.
Model meaning:              1. Indoor solar inverter&charger series   2. Capacity   3. D/U: support diesel generator/city power  XPI--0.5KVA - D  M  L        1      2           3  4  5      4. M: MPPT controller; P: PWM controller   5. S: internal battery; L: external battery
