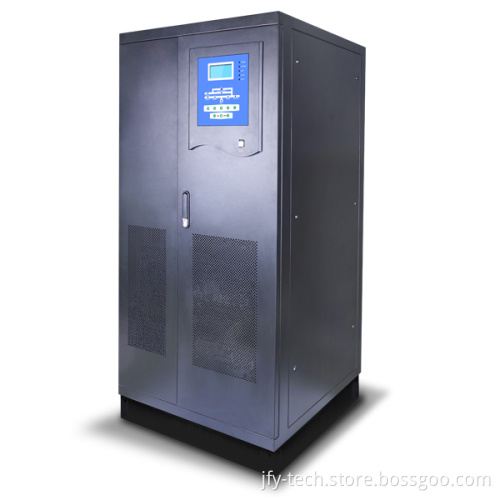

with isolation transformer 60kva online UPS

Specifications Built-in output isolation transformer

N+X redundant technology

Advanced IGBT rectifier

EPO, DC Start

Support generator input

MF series 10-400KVA UPS a true on-line double-conversion technology three-phase input / three-phase output low frequency UPS system, it is an ideal for protection and power quality where suitable for electronic power, chemical, medicine, steel, traffic, semiconductor, finance, insurance, telecom and industry automation devices etc.
MF series 10-400KVA UPS is designed an isolated transformer resists high impulse current with extra load compatibility and
comprehensive dual protection function provides high system reliability.   Features True online double conversion completely isolates the load from various grid faults and pollution Digital signal processing using latest DSP technology provides high performance and system reliability Output transformer between UPS and critical load isolates Extra-wide input voltage and frequency range with 12-pulse rectifier adapts adverse grid environment Intelligent battery management with directly checking and setting charge and discharge of battery on LCD extends battery life Unique dual protection function with hardware and software provides comprehensive protections Advanced distributed parallel technology allows N machines in parallel without centralized bypass cabinet DC cold start function offers emergency on ups by battery without utility power Large touch LCD display monitor various information at a glance Multiple monitoring and alarm functions available Top and bottom cabling available without input cabling cabinet Full front access with modular components design for easy maintenance

Model

MF1110-MF 33400

Capacity

10KVA

20KVA

30KVA

40KVA

50KVA

60KVA

80KVA

100KVA

120KVA

160KVA

200KVA

300KVA

400KVA

Type

True Online Double Convertion

Input

Phase

1ph+N+G

3ph+N+G

Voltage

220/230/240VAC

300/400/415VAC(-30%~+30%)

Frequency

50/60Hz

Power Factor

>95%

Bypass

Phase

three-phase four-wire

Voltage

220/230/240Vac

300/400/415Vac(-30%~+15%)

Frequency

50/60Hz

Overload Capability

<150%, normally running

Bypass

Battery Voltage

348/360Vdc (29~30pcs*12Vdc)

Charging Current

1-100A(setting by battery capacity)

Output

Phase

1ph+N

3ph+N

Voltage

220/230/240VAC

300/400/415VAC

Frequency

50/60Hz

Power Factor

0.8

THD

<3%(linear load); <5% (non-linear load)

Voltage Transients

<5% (0-100%)

Overload Capability

<105% normally running; 105%-125% 10min; 125%-150% 1min; 150% 1ms

System

System efficiency

91%

91%

92%

92%

92%

93%

93%

93%

94%

94%

95%

95%

95%

Cooling

Fan Cooling

Communication Interface

RS232, RS485, SNMP Card, Dry Connect (Optional)

Operating Temperature

0-40°C

Humidity

0-95% non-condensing

Altitude

<4000m

Noise Level

<50dB

<60dB

<65dB

<70dB

Protection Level

IP20

Storage Temperature

-25°C~70°C

Dimension(W×D×H mm)

380×800×1200

450×1000×1400

750×750×1600

1200×900×1700

1500×1200×1800

1800×1250×1800

Weight(kg)

115

180

260

350

550

650

850

950

1100

1350

1550

1800

2000
