hybrid home power systems 1kw

Specifications 1.Dual inputs(Solar & AC)

2. Automatically smooth transfer between AC& Inverter

3.Battery access, AC also chargers the battery

SolarUPS-1.0KW- LC   Outstanding performance: 1.Dual inputs design to save solar expenditure: Solar and AC utility inputs which makes it possible to back up power even in long raining days. This will greatly save the solar panel and battery investment.   2.Automatically smooth switch and Zero transfer time: Whichever of the AC input or inverter drops, the internal smart switch will smoothly transfer the load to another source, it’s uninterruptable.   A. Key features: LCD display External battery access Solar input&AC220V/50Hz input AC also chargers the battery Output AC 1kW/1.4kVA (PF=0.7) 220V/50Hz 60Hz as optional Automatically smooth transfer between two sources (AC and Inverter)   B. Specification

CHARACTERISTICS	SolarUPS-1.0KW- LC
Solar Input (Embedded solar Charger)
Max. DC Input voltage	40Vdc
Max. DC Input Current	40A
AC Embedded Grid Charger Charging Current	10A
Battery Rating
voltage	24V
Ah	External
AC Input
City Grid	220Vac
AC Output
KW	1KW
KvA(PF=0.7)	1.4kVA
Net Unit
Dimensions (W / D / H)	388*145*210 mm
Net weight	14Kg
Package
Dimensions (W / D / H)	480*220*280 mm
Weight	15.5Kg

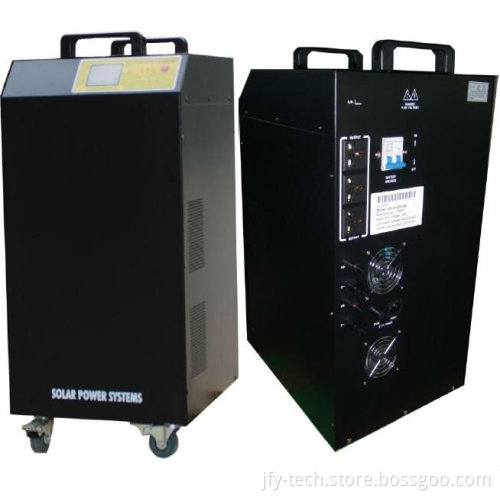

      C.Picutures
