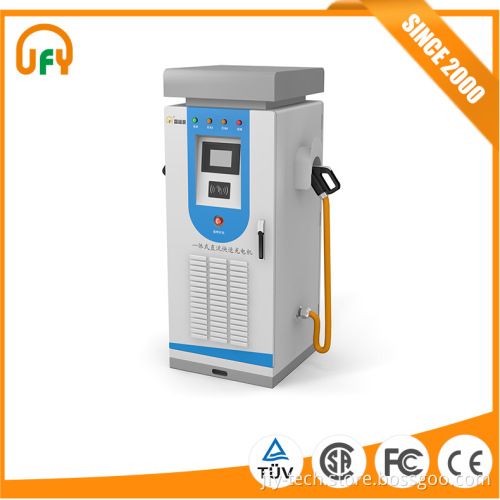

JFY CSI series 60KW Integrated smart DC charging pile

JFY CSI series 60KW Integrated smart DC charging pile Product Description Product Features Wide range of charging voltage: 200-750VDC Great charging capacity: >600V full power output, <600V constant current 25V output Smart BMC power supply self-adaption (12V/24V) Technical data

Item	CSI 45K750-1 CSI 45K750-2	CSI 60K750-2	CSI 90K750-2	CSI 120K750-2	CSI 180K750-2
Input Voltage	AC380V±15%(three-phase five-wire system)
Input Frequency	45Hz~65Hz
Input power factor	≥0.99
Peak Efficiency	≥94%
Output rating	45KW	60KW	90KW	120KW	180KW
Output voltage range	DC 200~750V
Stable voltage accuracy	≤±0.5%
Stable current accuracy	≤±0.5%
Ripple Factor	≤1%
Time of soft start	3~8s
Operating temperature	–30~+50°C
Storage Temperature	–40~+70°C
Operating humidity	5%~95%
Interface for charging	1 or 2 (to meet the national standard GB/T 20234.3)
Communication Protocol	GBT 27930-2011
Extension interface	Standard: RS585/LAN, optional: CAN/GPRS
Noise	≤65dB
Level of protection	IP54
Protection Functions	Input overvoltage/undervoltage, output overvoltage, overcurrent, short circuit,electric leakage, lightning  protection, emergency shutdown and other protective functions
Dimension(W*D*H)	600*420*1500 mm	600*620*1560 mm	700*650*1700 mm	700*650*1900 mm	650*750*1800 mm
