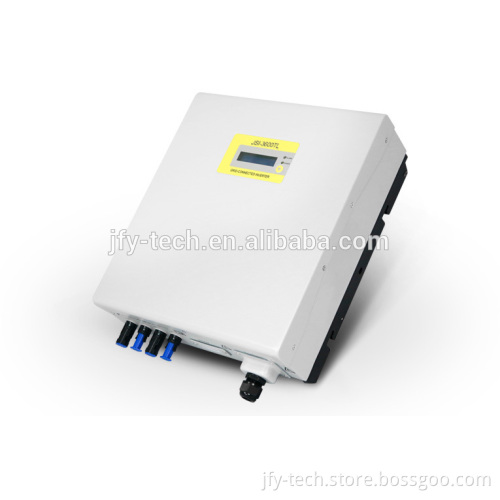

3600W JSI Seires With Mppt Mode On grid Solar Energy Inverter

Product Details JSI Series Single-Phase String Inverter Features
High performance string inverters
 From 0.75kW to 3.6kW                                     Wide PV input voltage range
 Rapid MPPT tracking technology               Two MPPT trackers
 Superior PV energy harvest                          Transformerless design with higher operation efficiency
 Excellent thermal performance                   High overload capability under most ambient conditions
Full data display and communications
 LCD display energy data                                  Bright LED indicators imply system status at a glance  PC software for remote monitoring and system troubleshooting            Integrated RS232 serial communications
Easy and affordable to install
 Lightweight and compact size
 Includes a lightweight portable bracket simplifying installation
 Firm IP65 inverter enclosure allows outdoor application
Cost advantages
 Transformerless design cutting down the cost              Light weight and small dimension, reducing shipping cost
 IP65 protection degree, suitable for outdoor installation,reducing construction cost
 Low maintenance expense
Product Introduction Product Parameters

MODEL(JSI)	1100TL	1500TL	2000TL	2500TL	3000TL	3600TL	5000TL	6000TL
Max. DC Input Power(W)	1170	1750	2300	2700	3660	3750	5300	6400
Max DC Voltage(Vdc)	450	450	500V				550
MPPT Operating Range(Vdc)	80~450	100~450					100~500
Number of Parallel Inputs	1			2			3
Number of MPP Trackers	1
Max. Input Current(A)	11.7	10	13	14.5	20	20	22.5	27.5
Nominal Output Power(W)	1100	1500	2000	2490	3000	3600	4600	6000
Max. Output Power(W)	1100	1650	2200	2490	3400	3600	5000	6000
Nominal Output Current(A)	6.5	6.5	8.7	10.8	13	15.7	20	26
Max. Output Current(A)	5.7	7.9	10.5	12	15.7	16	24	29.3
Nominal AC Output Voltage(Vac)	230
AC Output voltage range (Vac)*	190~265
AC Grid frequency range (Hz)*	50±5
Power Factor (cosφ)	>0.99
THDI	<3%(at nominal output power)
Max.efficiency	96.50%	96.50%	97.00%	97.10%	97.20%	97.30%	97.40%	97.40%
Euro.efficiency	95.40%	95.50%	96.20%	96.30%	96.40%	96.60%	96.80%	96.80%
MPPT. efficiency	99.60%	99.60%	99.60%	99.60%	99.60%	99.60%	99.60%	99.60%
Operating Temperature(℃)	-25~+60
Noise typical[dB(A)]	≤20dB(A)
Operating Consumption(W)	0
Electrical Isolation	Transformerless
Cooling Concept	Natural cooling
Protect Level	IP65
Communication	RS232(WiFi optional)
Dimension (W×D×H)(mm)	345*152*315		345*152*355		345*152*385		345*152*505	345*162*573
Weight (Kg)	12		13		15		19	24
*AC grid voltage range and frequency range depend on local standards
