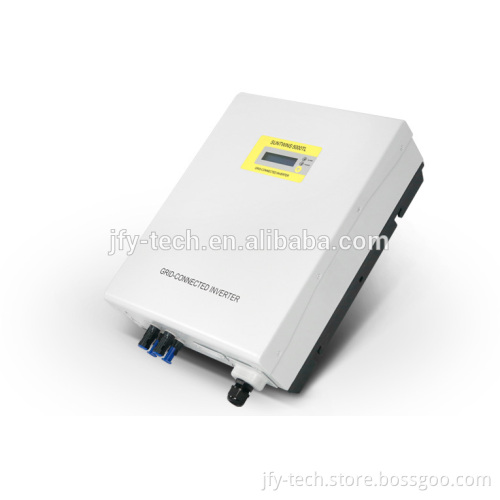

5KW SUNTWINS Series Dual MPPT Solar Africa Inverter On Grid

Product Details SUNTWINS Series Dual MPPT String Inverter
Features
High performance string inverters
 From 3.0KW to 5.0KW
 Wide PV input voltage range
 Rapid MPPT tracking technology
 Two MPPT trackers
 Superior PV energy harvest
 Transformerless design with higher operation efficiency
 Excellent thermal performance
 High overload capability under most ambient conditions
Easy and affordable to install
 Lightweight and compact size
 Includes a lightweight portable bracket simplifying installation
 Firm IP65 inverter enclosure allows outdoor application Full data display and communications
 LCD display energy data
 Bright LED indicators imply system status at a glance
 PC software for remote monitoring and system troubleshooting
 Integrated RS232 serial communications  Cost advantages
 Transformerless design cutting down the cost
 Light weight and small dimension, reducing shipping cost
 IP65 protection degree, suitable for outdoor installation, reducing construction cost
 Low maintenance expense
Product Introduction Product Parameters

MODEL(SUNTWINS)	3300TL	4000TL	5000TL
Input (DC side)
Max Input Power of per MPPT (W)	2000	2300	3000
Max. DC Input Power(W)	3450	4160	5200
Max DC Voltage(Vdc)	500
Start voltage (Vdc )	150
MPPT Operating Range(Vdc)	100~450
Number of Parallel Inputs	2
Number of MPP Trackers	2
Max. Input Current(A)	2*10	2*13	2*15
Output (AC side)
Nominal Output Power(W)	3300	4000	5000
Max. Output Power(W)	3300	4000	5000
Nominal Output Current(A)	14.3	17.4	21.6
Max. Output Current(A)	16.5	20	25
Nominal AC Output Voltage(Vac)	230
AC Output voltage range (Vac)*	185~265
AC Grid frequency range (Hz)*	50±5
Power Factor (cosφ)	>0.99
THDI	<3%(at nominal output power)
System
Max.efficiency	97.3%	97.5%	97.5%
Euro.efficiency	96.5%	96.8%	96.7%
MPPT. efficiency	99.6%	99.6%	99.6%
Operating Temperature(℃)	-25~+60
Noise typical[dB(A)]	≤25
Operating Consumption(W)	0
Electrical Isolation	Transformerless
Cooling Concept	Natural Cooling
Protect Level	IP65
Grid protection	According to G83/2
Communication	RS-232 (WIFI Optional )
Dimension (W×D×H)(mm)	345*152*435
Weight (Kg)	16.5	18	18
*AC grid voltage range and frequency range depend on local standards.
