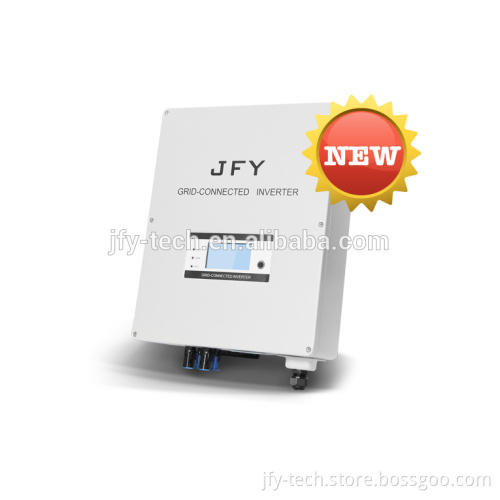

3000W Solar Inverter Grid Tie Solar Power System

Product Details SUNSEED Series Single-Phase Dual Mppt String Inverter
Features
High performance string inverters
 From 3.0kW to 5.0kW
 Wide PV input voltage range
 Digital control technology
 Rapid MPPT tracking technology
 Two MPPT trackers
 Transformerless design with higher operation efficiency
 Excellent thermal performance
 High overload capability
 Reactive Power Control and Active Power Control function
Full data display and communications
 Large screen display
 Bright LED indicators imply system status at a glance
 Different monitoring solutions
 Integrated RS232 serial communications
Easy and affordable to install
 Lightweight and compact size
 Transformerless design
 Low maintenance expense
 Includes a lightweight portable bracket simplifying installation
 Firm IP65 inverter enclosure allows outdoor application
Certificates
TUV, SAA, CE, CQC, AS4777.2/3, AS/NZS 3100,VDE 0126-1-1, EN62109-1/2, G83/2, G59/3,
CNCA/CTS0004-2009A, CNCA/CTS0006-2010, EN61000-6-1/2/3/4, EN62109-1/2, RD1663, C10-11
Product Introduction Product Parameters

MODEL(SUNSEED)	3000TL	4000TL	5000TL
Input (DC side)
Max. DC Input Power(W)	3300	4160	5200
Max DC Voltage(Vdc)	500
MPPT Operating Range(Vdc)	100~450
Number of Parallel Inputs	2
Number of MPP Trackers	2
Max.input current of per Mppt(W)	2000	2300
Max. Input Current(A)	2*11.3	2*13	2*15
Output (AC side)
Nominal Output Power(W)	3000	4000	5000
Max. Output Power(W)	3000	4000	5000
Nominal Output Current(A)	13.0	15.7	21.5
Max. Output Current(A)	15.0	16.0	25
Nominal AC Output Voltage(Vac)	230
AC Output voltage range (Vac)*	185~265
Norminal AC grid frequency (Hz)	50	50	50
AC Grid frequency range (Hz)*	50±5
Power Factor (cosφ)	>0.99
THDI	<3%(at nominal output power)
System
Max.efficiency	97.2%	97.1%	97.0%
Euro.efficiency	96.5%	96.8%	96.4%
MPPT. efficiency	99.8%	99.6%	99.8%
Gernaral Data
Operating Temperature(℃)	-25~+60
Noise typical[dB(A)]	≤25
Power consumtion at night (W)	0
Electrical Isolation	Transformerless
Cooling Concept	Natural Cooling
Degree of protection	IP65
Communication	RS-232 (WIFI Optional )
Dimension (W×D×H)(mm)	358*145*430
Weight (Kg)	16.5	18	18
*AC grid voltage range and frequency range depend on local standards.
