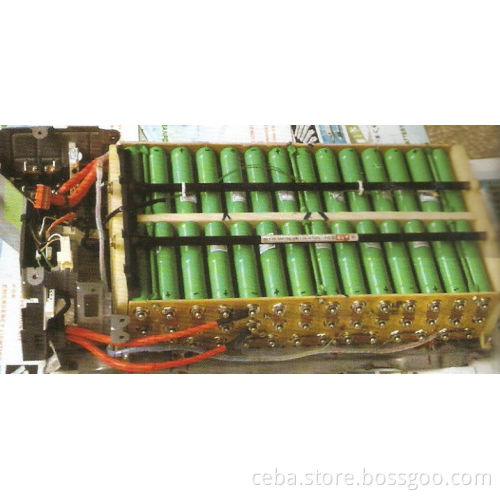

7.2V/6500mAh Ni-MH Car Battery Replacement

                                Item

Specification

Dimensions

Outer Diameter (mm)

32.2±0.07

Over Height (mm)

60.5±0.2

Approximate Weight(g)

165

Nominal Capacity(mAh)

≥6500(IEC)

Nominal Voltage(V)

1.2

Internal Resistance (mΩ)

≤1.6

1.2V Discharge Capacity1.2V Cut

≥70%

Specific Energy (Wh/kg)

≥45

Peak Power (W)

≥130(DOD50%)

Specific Power(W/kg)

≥850(DOD50%)

(30C Discharge,70%SOC,0.8V Cut-off)

≥10S

Peak Charging (15C Charge, 50%SOC, 1.66V Cut-off)

≥10S

Max Discharge (15C Discharge, 70%SOC,0.8V Cut-off)

≥60S

High Temperature Performance(50°C Charge/Discharge Capacity Rate)

≥70%

Low Temperature Performance(-20°C Discharge Capacity Rate)

≥80%

Charge Retention(30 Day)

≥75%

Working Temperature

-20°C to +55°C

Storage Temperature

-40 to +65°C

Cycle Life(C/3 Charge,1C Discharge)

≥800cycles
