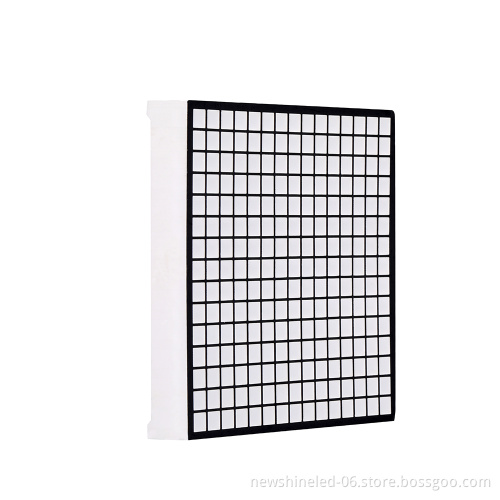

64x64mm DIP Through-Hole 16x16 Dot Matrix LED Display (Red/Green/Blue/Orange) for Indoor Advertising
-
$0.291-999 piece
-
$0.25≥1000 piece
- Min. Order:
- 1 piece
- Min. Order:
- 1 piece
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,Western Union,T/T |
|---|
Through Hole DIP 64x64mm Dot Matrix LED Display Red Green Blue Orange 16x16 dotLED Matrix Display for Indoor Advertising Media
1)Diameter of LED dot: Φ 1.9mm / Φ 3mm
2) Dimension/Size: 40mm*40mm[main item], 64mm*64mm
3) Shape: With and without flange
1.Specification
)1.LED:16*16 dot matrix
2) Size: 64mm/40mm/32mm
3) Shape: With and without flange
4) Emitted colors: Various colors are available, such as orange,red, blue etc.
5) Lens type: Water clear, diffused, color transparent, color diffused
6) Viewing angle: 15-30-45-60 degrees
7) Low light decay: 10% of first 1000 hours
8) Solid-state, high shock and vibration resistant
9) No RF interfence
10) Maintenance free,easy installation
11) Longlife 50000+hours
2.Technical Specification
| 5mm Round Led (with Flange)(H8.6mm) | Technical Specification | ||||||||||
| Part Number | Chip Material | Lens Color | Emitting Color | Forward Voltage(V) | Dominant Wave Length(nm) | Luminous Intensity(mcd) | Reverse Current(µA) | Viewing Angle(Deg) | Test Condition | ||
| MIN | MAX | MIN | MAX | MAX | 2 θ1/2 | IF(mA) | |||||
| XH-1616B | InGaN | Water Clear | Blue | 2.8 | 4.0 | 455 | 475 | 1000-8000 | 10 | 20 | 20 |
| XH-1616C | InGaN | Water Clear | Green | 2.8 | 4.0 | 500 | 535 | 1000-25000 | 10 | 20 | 20 |
| XH-1616W | InGaN | Water Clear | White | 2.8 | 4.0 | 3000-25000 | 10 | 20 | 20 | ||
| XH -1616R | AlGaInP | Water Clear | Red | 1.8 | 2.5 | 620 | 630 | 1000-20000 | 10 | 20 | 20 |
| XH -1616O | AlGaInP | Water Clear | Orange | 1.8 | 2.5 | 600 | 615 | 1000-10000 | 10 | 20 | 20 |
| XH -1616Y | AlGaInP | Water Clear | Yellow | 1.8 | 2.5 | 585 | 595 | 1000-10000 | 10 | 20 | 20 |

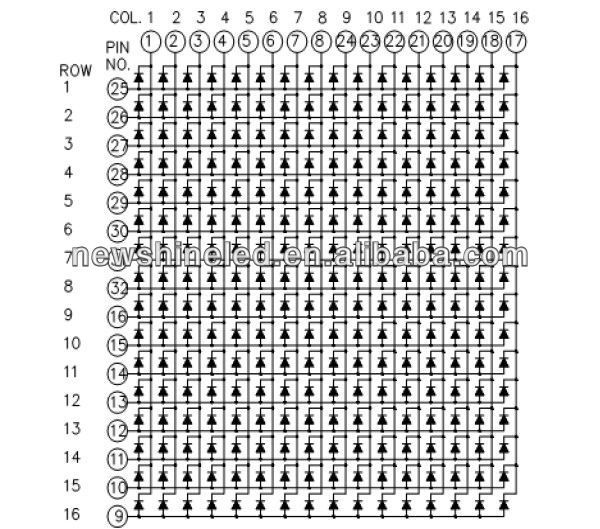

3. PINS Layout and Circuit Diagram of 16*16 LED dot matrix:

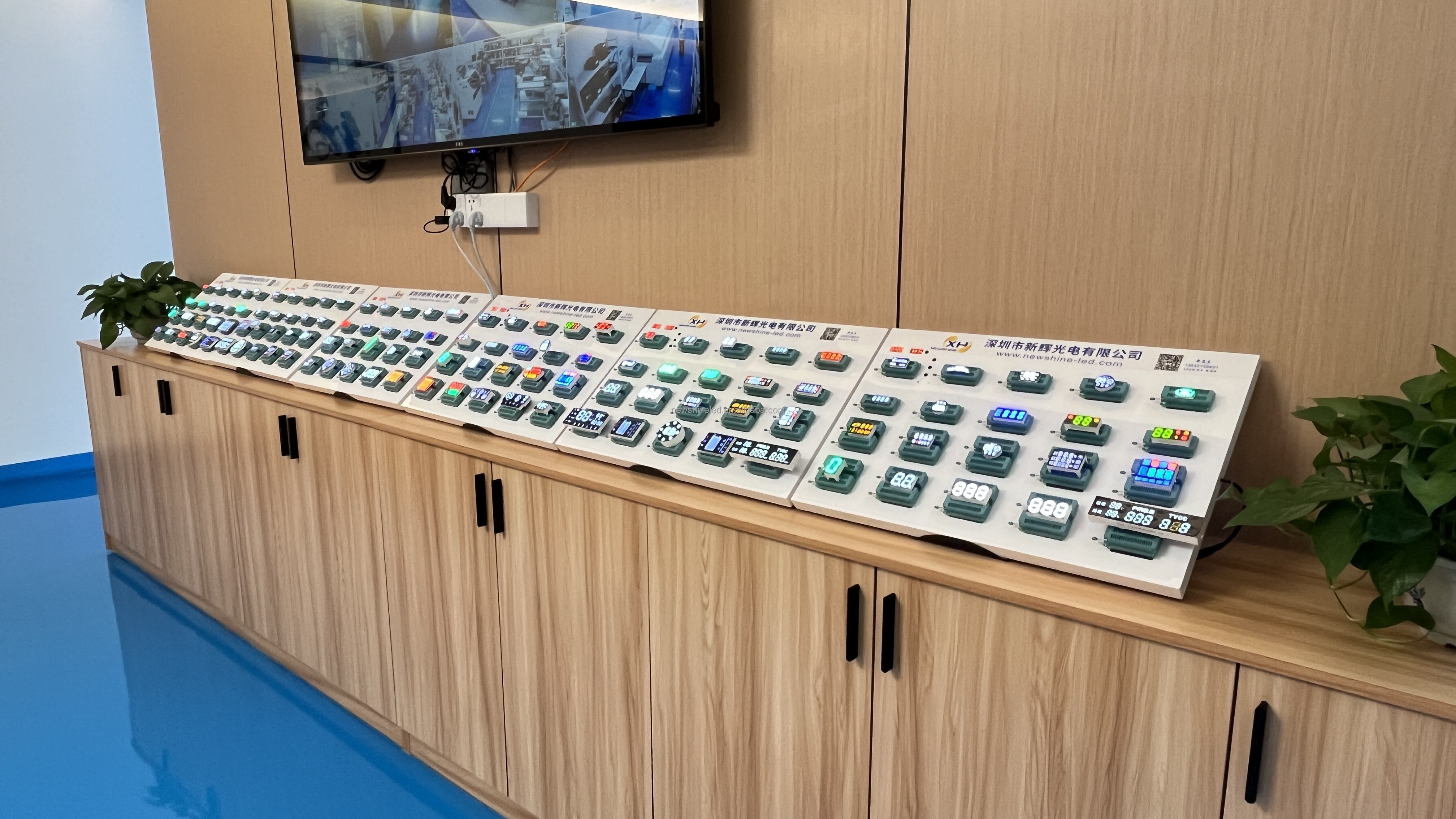

4. Related products of NEWSHINE LED dot matrix 5*7 8*8 5*8 series
Energy Saving Specialist---
SHENZHEN NEWSHINE OPTICS CO.,LTD.
[LED digital display/LED dot matrix display/ Led bulbs/led downlights/led spotlight/led candle lights/7 segment led display/led alphanumeric display]
Free sample provided, please click 'Send' co contact us !
Click for More Information!!!
