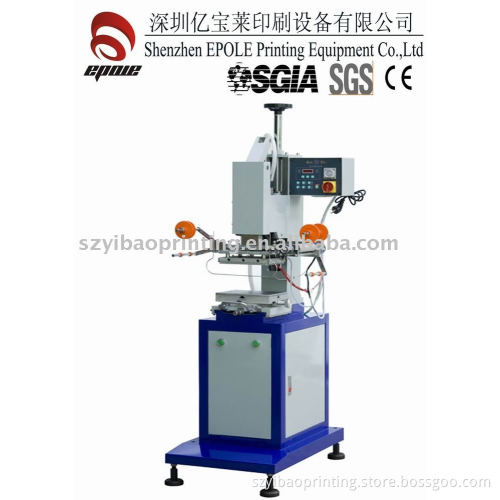

Pneumatic Flat Hot Stamping Machine

Specifications Pneumatic Flat Hot Stamping Machine

1.CE approved

2.Factory Price

3.Micro-computer control

4.Stamp plate size: 150*200mm

Pneumatic Flat Hot Stamping Machine Certification: CE approved Specification: 1. Mcro-computer control and pneumatic component drive 2. Stamping pressure, temperature and time adjustable 3. Worktable could be adjustable for forth/back move, easy and safe operation 4. Worktable could be adjustable for forth/back, left/right position, as well as turned slightly 5. Automatic and adjustable paper feeding, collection 6. According to the height of working pieces, cylinder stroke and the height of pad head could be adjusted by cylinder tune-way nut and handle respectively   Technical Parameters: Stamp plate size: 150*200mm Worktable size: 170*220mm Stroke: 38mm Temperature range: R.T.-280 Max stamping height: 230mm Maxs stamping pressure: 130kgf Max speed: 1200pcs/hr Voltage: 220V 50Hz Power: 900W Air pressure: 4-7bar Air consumption: <40L/min Measurement: 700*470*1550mm   OEM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience.
