Sreen Printing Machine

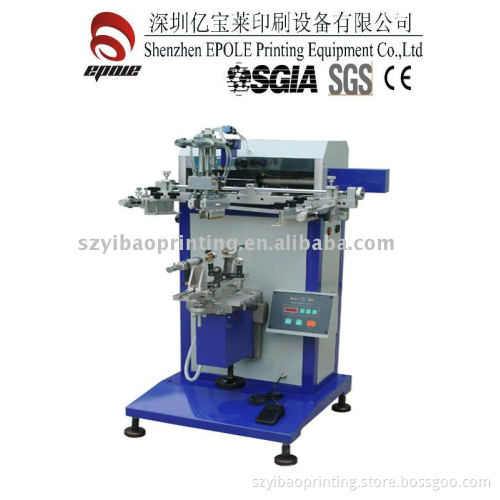

Specifications Pneumatic Round Sreen Printing Machine

1.Microcomputer controls

2.Small size

3.High speed

 CE Approved Pneumatic Round Sreen Printing Machine   Main features   1. Microcomputer controls each function with high automation and easy operation; 2. Automatic 4-digit counter installed; 3. Available for rounds and conical products; 4. Automatic ink squeegee and flooding, worktable elevating to assure easy operation and consistent print quality; 5. Printing speed and stroke could be adjusted to meet various requirements; 6. Automatic self-balancing squeegee ensures equal printing pressure; 7. Scraper section can be raised independently, easy to exchange and clean the screen frame. 8. Small size, high speed. 9.Auto balance ink scraper ,ensure efficient ink scraper . 10,Worktable is simply adjustable on its up /down position and plane angle ,also the screen stencil is  Capable to adjust on forth /back ,left /right ,up /down  position ,all lead to convenient adjustment and high precision on color registration . 11.Auto ,semi-auto ,manual model are  available . 12..No touching  stoke control ,adjustment will more long life .    Machine  Parameters

Max. Printing Area	250*130mm
Max Net Frame Size	430*280mm
Min Net Frame Size	230*140
Max Printing Dia	125mm
speed	100 pcs/h
Power	220V/50HZ 50W
Air Consumption	56L/min
Measurement	640*760*1250mm

  Machine weight 115kgs  Machine size :640*760*1250mm Package size :850*1030*1450mm Gloss weight :155kgs    Applied air pressure :4-8bar  Air consumption :130L/min  Cylinder level stroke 400mm Cylinder straight stroke :20mm Max. printing speed :100pcs /hr Workpiece conicity :+ 15°,7° Max.workpiece whole circle diameter :dia125mm Worktable left /right adjustment scope :90mm   OEM & ODM:    With the strong  belief and continuous efforts and the past many years ' experience in manufacturing  machinery . Epole will create every machine with heart , and  provide excellent service for our customers . Welcome your  inquiry  !
