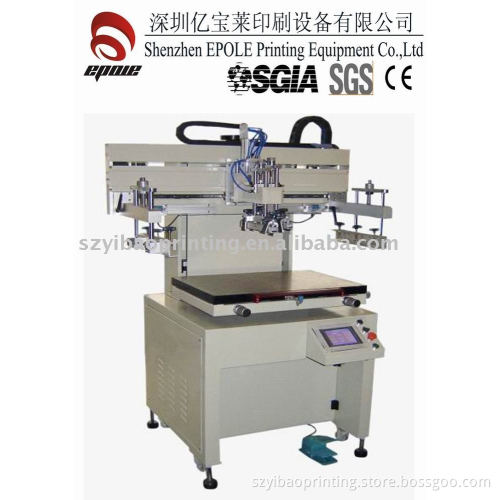

High Precision Electrical Screen Printing Machine

Specifications High Precision Electrical Screen Printing Machine

1. CE approved

2.Max.speed: 960pcs/hr

3.Max.Printing Area:500*700m

High Precision Electrical Screen Printing Machine Certification: CE approved Application:  It is widely used in LCD,EL,glass window, organic glass,conductive film circuit etc. Specification: 1.Vertical structure, screen printing plate moves vertically,printing head moves   horizontally; 2.The movements of screen printing plate and printing are drived independently.  The movement is harmonious and the speed is stable and adjustable; 3.PLC program control circuit,touch screen control panel; 4.Servo motor drive printing knife rest, photocell eye control stroke,  and they are adjusted independently. 5.Lift reduction gears made in Taiwan drive screen printing plate to go up and down and move stably. 6.There are precise and hardy worktable which are full of suction hole. 7.Vacuum inhale pump from sino- foreign joint venture can adsorb strongly and guarantee color processed precision. 8.There are precise fine-turning handle in the direction of X-axis and Y-axis,    adjust accurately.  9.There are three printing models, such as auto model,semi-auto model,full-auto model,printing time can be controlled by digit; 10.Independent nose lifting device  makes it easy to clean, load and unload screen printing plate, ink-return blade and squeegee. 11.Install device of adjusting screen space around arm lock, adjust conveniently 12.The angle of printing and ink-return can be adjustable. Technical Parameters:

Printing Area (mm)	400*600	Printing Speed(mm/sec)	40~300
Worktable Size(mm)	500*700	Printing Pressure(kgf /cm2)	4.0~6.0
Max.Screen Frame(mm)	700*850	Max.Printing Capability(time/Hr)	960
Worktable Precision(mm)	±0.05	Power(V/KW)	220/0.75
Substrate Thickness(mm)	50	Overall DimensionL*W×*H (mm)	1100*900*1850

OEM and ODM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience.
