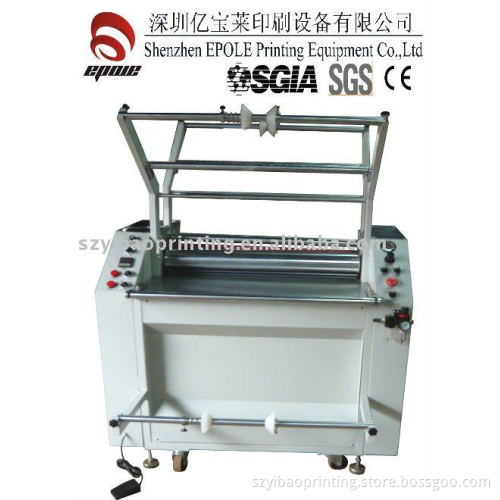

Roll Laminating Machine

Specifications Laminating Machine

1.Factory Price

2.The Width of Laminating film: 1150mm

3.The Speed of Laminating Film:1-30m/min

Name: Laminating Machine Introduction of FM-C Series Laminating Machine FM-C Series Roll to Roll Laminating Machine is designed for roll materials; it has these characters of beautiful appearance, less floor area, light weight, simple operation and quick speed. It adjusts the speed with frequency converter; it is equipped with temperature controller and the function of feeding material. You can choose single-side or double-side laminating functions and double deck laminating membrane one time. It is widely used in touch screen, food box, metal plate, circuit board, Optical film, glass and high-tech electronics industry; After laminating, the products is waterproof, durable, clear and has a strong stereo sense; Application: It is widely used in touch screen, food box, metal plate, circuit board, Optical film, glass and high-tech electronics industry; Main Features of FM-C Series Laminating Machine: 1.  Use big rubber roller, press evenly, the top roller is made from chromium; 2.  Control temperature automatically, you can set the temperature separately; 3.  Adopting frequency converter to adjust the speed stably and quickly; 4.  You can choose coiled material or sheet-fed laminating function; 5.  It has the function of moving forward and backward. You can make the product reverse when it is needed; 6.  Adjust pneumatically and freely; 7.  It has these functions of dividing and collecting release paper and winding the products; Technical Parameters:

Model	FM-C900-90A	FM-C1000-100A	FM-C1200-100A
The Diameter of Rubber Roller(mm)	90	100	100
The length of Rubber Roller(mm)	900	1000	1200
The Width of  Laminating Film (mm)	850	950	1150
The Speed of Laminating Film(m/min)	0-28	1-30	1-30
Power(V)	220/380	220/380	220/380
Motor Power(V)	750+60	750+90	1100+120
Electric Heating Power (W)	1200	1200	1500
The Thickness of Laminating Film(mm)	2	2	2
Weight(KG)	275	340	420
Size(mm) (L*W*H)	1750*1310*1370	1750*1420*1400	1950*1620*1400
