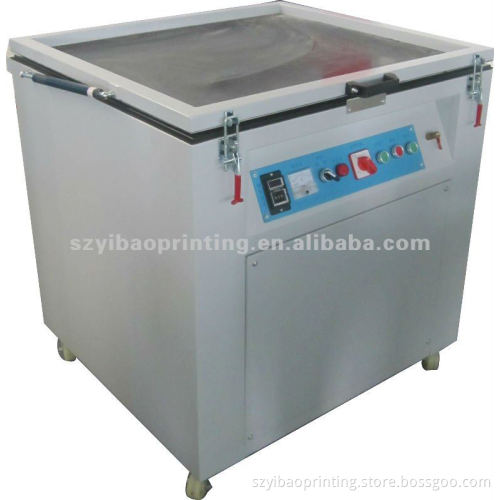

screen printing plate Exposure machine

Specifications 1.CE approved

2. high quality guarantee

3.best after-sales service

4.apply for screen printing late

screen printing plate precision Exposure machine Application: It can prevent the precision screen printing plate from avoiding light and dry. Main Features: Specifications: 1.It adopt microcomputer controller to set suction vacuum and exposure time; it can store sixty sets parameters, adjust conveniently. 2.This Exposure machine adopt integrated light control light compensation! It has these characters of uniform light , stable light source control and light source wavelength, perfect pumped vacuum system.  3.It adopt a parabolic reflectors; the efficiency of reflecting light reaches as high as 80%,; It has the quick start-up manner and save electricity, etc Technical Parameters:

Model	SB7080	SB9012	SB9012	SB1215	SB1215
Power	220V 50Hz	220V 50Hz	380V 50Hz	220V 50Hz	380V 50Hz
Tube Power	1KW	2KW	2KW	2KW / 3KW	2KW / 3KW
Exposure Distance	600±50mm	600±50mm	600±50mm	600±50mm	600±50mm
Exposure Area	600*700mm	800*1100mm	800*1100mm	1100*1400mm	1100*1400mm
MAX. Plate Burning Area	550*650mm	750*1050mm	750*1050mm	1050*1350mm	1050*1350mm
Appearance Size	850*760 *1060mm	1250*960 *1060mm	1250*960 *1060mm	1550*1280 *1060mm	1550*1280 *1060mm
Weight	100 kg	170 kg	170 kg	230 kg	230 kg

        We believe that choosing us is your best choice.we make each machine with our heart!!Thanks for your inquiry!!
