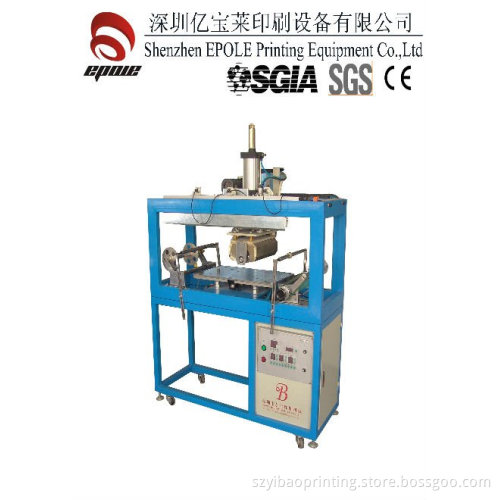

Multi-functional Flat Heat Transfer Machine

Specifications 1.Factory Price

2.CE approved

3.Multi-functional

4. Max.transfer Area:300*700mm

Multi-functional Flat Heat Transfer Machine Certification: CE approved Specification: 1.Stamping pressure,temperature and time are adjustable;
2.Worktable could be moved forward and backward,left and right,as well as operate safely and conveniently.
3.Worktable could be adjustable forward and backward, left and right, as well as turned reelingly.
4.Feeding and collecting paper automatically.
5.The installation of photoelectric cell (electric eyes) can track and control the transfer paper.
6.The height of stamping head is adjustable for stamping larger workpiece.
7.With gas conversion equipment, workpiece can be drived by shuttle worktable and  printed smoothly.
8.Installing security equipment is to guarantee the safety of operator. Technical Parameters:

Appearance size (L*W*H)	1320*480*1750mm
Normal power consumption	1 kw/h
Heating temperature scope	Normal temperature ~300°C,temper error±5°C
Temperature controller	PID control
The way of stamping	Rolling stamping
Hot plate area	Ø100*300mm
Max. stamping area	300*700mm
Max. round body stamping diameter	All the round Ø120mm; curved surface:Ø270mm
Working table area	350*600mm
The style of roll film	Photoeletric sensor and auto rolling film
Roll film motor	15w two motors and two –ways roll film
Power	Heating power 1500w,total power about 1800kw
Itinerary motor	90w motor of electronic adjust speed
Motor of rubber head	90w motor of electronic adjust speed  (stamping round body ) can adjust the speed
Gas pressure	0.6~0.9Mpa(6~9bar)
Stamping cylinder	100*150mm
Max stamping pressure	6kg/cm2
Voltage	220V/50Hz,1800W

  OEM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience.
