5V-12V High Voltage T1 LED Lamps with Internal Resistor - Red, Yellow, Blue, Green, White, RoHS Compliant

5V-12V High Voltage T1 LED Lamps with Internal Resistor - Red, Yellow, Blue, Green, White, RoHS Compliant

$0.10

1000-4999 piece
$0.08

5000-9999 piece
$0.07

10000-49999 piece
$0.06

≥50000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Chinese special wavelength LED supplier hot sell 5V 6V 12V High Voltage T1 3mm 5mm Through-Hole internal resistor red yellow blue Green white LED Lamp with RoHS Complianceat competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

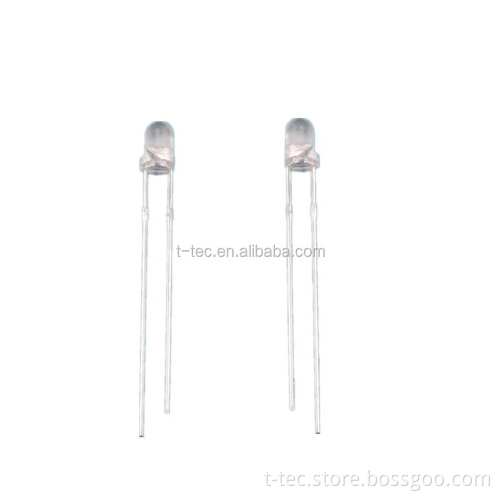

5V 6V 12V High Voltage T1 3mm 5mm Through-Hole internal resistor red yellow blue Green white LED Lamp with RoHS Compliance

Features

1. Radial / Through hole package

2. Reliable & robust

3.Low power consumption

4. Available on tape and reel

5.14V internal resistor.

6.RoHS Compliant

Application :

1.indicator light

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	4.5	12	13	V
DC reverse Current	I_R	V=5V	----	----	10	μA
Wavelength	W λ	I=20mA	515		525	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	10	----	nm
Luminous Intensity	I_V	I=20mA	3000		5000	MCD
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg
