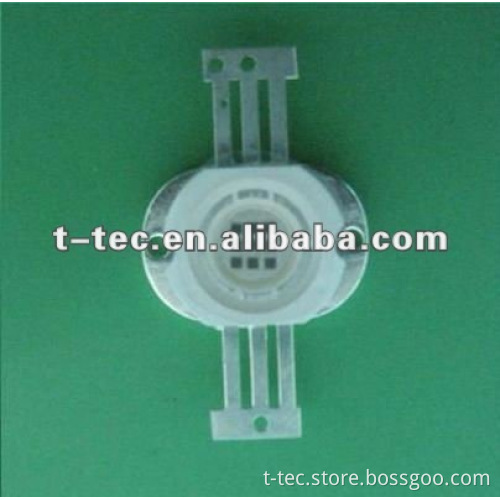

10w 700nm high power led

Specifications 10w 700nm high power led

1).690-710nm

2).input voltage:5-7v

    o-Optical characteristics at IF=1000mA, TA=25ºC

Parameter	Symbol	Value			Unit
		Min	Typ	---
Luminous Flux [1]	V [2]	25	35	45	LM
wavelength	nm	690	700	710	NM
Forward Voltage [4]	VF	5	6	7	V
View Angle	2Θ 1/2	170			deg.
Thermal resistance [5]	RθJ-B	10.5			ºC /W
Thermal resistance [6]	RθJ-C	9.0			ºC /W

  1-2  Absolute Maximum Ratings

Parameter	Symbol	Value	Unit
Forward Current	IF	1	A
Power Dissipation	PD	10	W
Junction Temperature	Tj	TBD	ºC
Operating Temperature	Topr	-30 ~ +85	ºC
Storage  Temperature	Tstg	-40 ~ +100	ºC
ESD Sensitivity [7]	-	±20,000V HBM	-

  application:     Growing light Automotive interior/exterior lighting Automotive signal lighting Automotive forward lighting General Torch Architectural lighitng LCD TV/Monitor Backlight Projector light source Traffic signals Task lighting Decorative/Pathway lighting Remote/Solar powered lighting Household appliances
