6W 9W 3535 5050 Four Wavelength SMD LED

$2.50

1000-4999 piece
$2.00

5000-9999 piece
$1.80

10000-49999 piece
$1.50

≥50000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Chinese special wavlength LED manufacturer offer 6W 9w 3535 5050 four wavelength surface mount power LED

Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. LED die, Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.

offer 6W 9w 3535 5050 four wavelength smd LED

Product Description

Chip material : InGaInP GaN

Emitted color : red/green/blue/UV

Lens Appearance: water clear

High flux output and high luminance

Lead free product

Meet ROHS

Ceramic Substrate

Initial Electrical/Optical Characteristics (Ta=25℃)

Item	Symbol		condition	Min	Type	Max	Unit
DC forward Voltage	V_F	R	I=350mA	2.1	2.2	2.5	V
		G		3.1	3.4	3.8
		UV		3.1	3.5	4.0
		B		3.1	3.4	3.8
DC reverse Current	I_R		V=5V	----	----	10	μA
Chromaticity coordinates*	λ	R	I=350mA	622	624	628	nM
		G		515	523	528
		UV		400	405	410
		B		450	455	460
Spectrum Radiation Bandwidth	Δλ		I=350mA	----	28	----	Nm
Luminous Intensity	I_V	R	I=350mA	60	----	70	LM
		G		35		45	LM
		UV		500		600	mw
		B		15		25	LM
50%Power Angle	2θ1/2		I=350mA	----	120	----	deg

Size:

offer 6W 9w 3535 5050 four wavelength smd LED

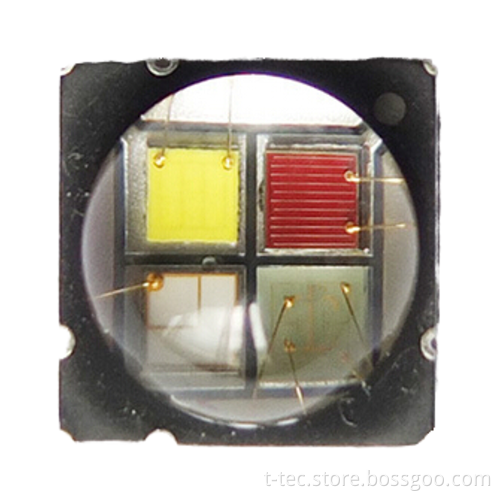

Appearance:

offer 6W 9w 3535 5050 four wavelength smd LED

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
