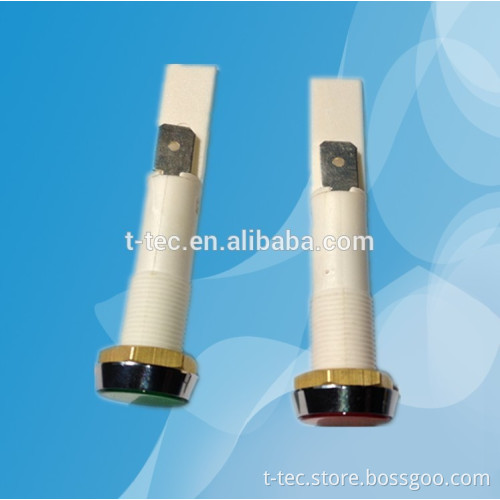

10mm red color 230V indicator lamp

Specifications 10mm red color 230V indicator lamp, CE certification .

  10mm red color  230V indicator  lamp     Package size:

Assembly	Material
plastic crust	PA66
trail granule	PA66
LED	InGaN+ epoxide resin
resistor	120KΩ
Connect	Silver-plated brass

                                                                                 Absolute Maximum Rating              (Ta=25℃)

Item	Symbol	Value	Unit
DC forward current	IF	10	mA
Power dissipation	PD	0.35	mW
Max work voltage	V	260	V
Operating temperature	Topr	-40~+85	℃
Storage temperature	Ystg	-40~+80	℃
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260℃/3Sec	---

Plus with Max 10ms,duty ratio max1/10
