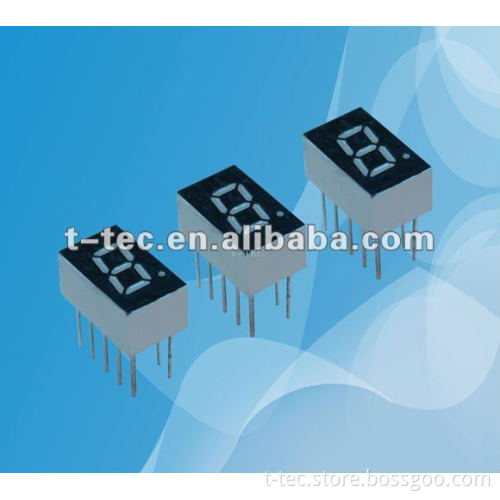

0.36" Single Digit red LED Display

Initial Electrical/Optical Characteristics

Item	Symbol	condition	Min	Type	Max	Unit
forward Voltage Per segment	VF	I=20mA	3.6		4.6	V
forward Voltage Per decimal point			1.8		2.3
reverse Current	IR	V=5V	----	----	100	μA
Chromaticity coordinates*	λ	I=20mA	625	630	635	nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity  Per segment	IV	I=20mA	20	----	50	mcd
Luminous Intensity Per decimal point			10		20
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg

The product itself will remain within RoHS compliant version   Descriptions : designed for viewing distances up to2meters. These displays provide excellent  reliability in bright ambient light. These devices are made with whitesegments and black( or grey)surface.   Applications : Audio equipment,Instrument panels,Digital read out display
