Product Description

Special wavelength LED manufacturer Sell To18 metal can 1200nm 1300nm 1450nm InGaAsP infrared diode at competitive price

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

Special wavelength LED manufacturer Sell To18 metal can 1050nm 1200nm 1300nm 1450nm 1550nm 1650nm 1720nm infrared ir led

Product Description

1) metal top type

2) TO18 standard

3) wavelength range:1300nm ,invisible light

4) work volt:0.8-1.0v 20mA

Item	Symbol	Value	Unit
DC forward current	I_F	20	mA
Pulse forward current	I_FP	100	mA
Power dissipation	P_D	20	mW
Operating temperature	T_opr	-20~+75	℃
Storage temperature	Y_stg	-30~+100	℃
Reverse voltage	V_R	5	V
Sold soldering temperature	T_sol	260℃/3Sec	---

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	0.8	----	1.0	V
DC reverse Current	IR	V=5V	----	----	10	μA
Wavelength	Wλ	I=20mA	1250	1300	1350	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	50	----	nm
Luminous Intensity	Ee	I=20mA	2.5		6.5	Mw
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg

also have other wavlength, such as 680nm, 690nm,700nm,730nm,740-750nm,760-770nm,770-780nm,800-810nm,830-840nm,850nm,860-870nm,880nm,900-910nm,960-970nm,970-980nm,1020nm,1050nm,1200nm,1300nm,1450nm,1550nm,1650nm,1720nm,2000nm,3000nm,4000nm

Appcications:

1)medical facilities.

2)infrared systerm

3)physiotherapeutic instrument

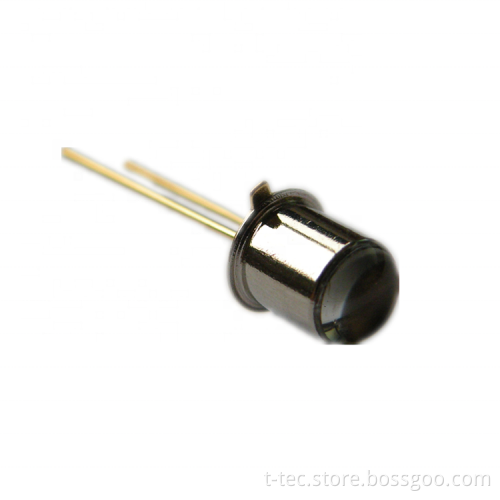

Appearance:

Special wavelength LED manufacturer Sell To18 metal can 1050nm 1200nm 1300nm 1450nm 1550nm 1650nm 1720nm infrared ir led

Size drawing :

Special wavelength LED manufacturer Sell To18 metal can 1050nm 1200nm 1300nm 1450nm 1550nm 1650nm 1720nm infrared ir led
