Chinese special wavelength LED manufacturer offer 3W GaN 430nm 440nm high power uv led for growth

Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.

High Power 3W UV LED 380nm-440nm High Performance Electronic Components

Product Description

1)volt:2.8-3.4v 700mA

2)color: blue purple color

3)430-440NM, also can be UV 350-360,360-370,370-380,380-390,390-400,IR 660-1050nm and so on

4)used for sterilization,also for Traping mosquito lamp

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=700mA	2.9	----	3.4	V
DC reverse Current	I_R	V=5V	----	----	10	μA
Dominant Wavelength	Wd	I=700mA	430	----	440	nm
Spectrum Radiation Bandwidth	Δλ	I=700mA	----	28	----	Nm
Luminous Intensity	I_V	I=700mA	10	----	25	Lm
50%Power Angle	2θ1/2	I=700mA	----	120	----	deg

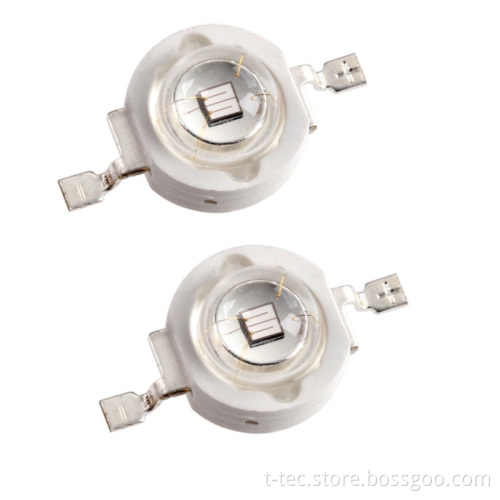

Appearance

High Power 3W UV LED 380nm-440nm High Performance Electronic Components
