590nm Super Bright Yellow LED Lamp - T1 3/4 5mm Through Hole

590nm Super Bright Yellow LED Lamp - T1 3/4 5mm Through Hole

$15.00

1-49 bag
$12.00

50-99 bag
$10.00

100-199 bag
$9.00

≥200 bag

Min. Order:: 1 bag

Min. Order:: 1 bag

Port:: Shenzhen or Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000000 Piece/Pieces per Quarter
Payment Type:	Western Union,T/T
Port:	Shenzhen or Hongkong

Product Description

Chinese special wavelength LED supplier hot sell 3528 PLCC2 880nm InGaAs SMD infrared diode at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

T1 3/4 5mm through hole super brightness 590nm Yellow LED lamp

Applications:

1. oxygen meter
2.Gene testing device
3.motion capture
4. iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection
10.solar simulation
11.photo therapy

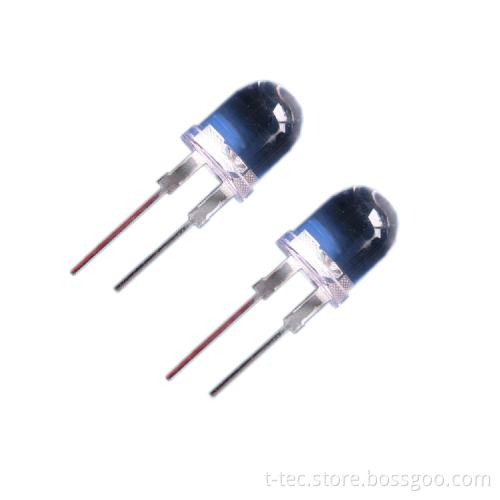

Photo:

package size :

Initial Electrical/Optical Characteristics (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	1.85	2.0	2.3	V
DC reverse Current	I_R	V=5V	----	----	5	μA
Dome Wavelength	W_D	I=20mA	588	590	593	nm
Peak Wavelength	Wp	I=20mA		590		nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	20	----	nm
Luminous Intensity	I_V	I=20mA	3200	4000	7000	mcd
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg
