555nm Yellow-Green InGaAsP Through-Hole LED Electronic Components Manufacture

555nm Yellow-Green InGaAsP Through-Hole LED Electronic Components Manufacture

$1.00

10-9999 piece
$0.50

10000-49999 piece
$0.45

50000-99999 piece
$0.40

≥100000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Chinese special wavelength LED supplier offer T1 3mm water clear lens 555nm InGaAsP Yellow-Green through hole LED lamp at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

Manufacture 555nm Yellow-Green InGaAsP Through-Hole LED Electronic Components

Application:

1.Blood glucose test

2.endoscope
3.Gene testing
4.oxygen meter
5.Vein certification

6.vision system

Product Description

Yellow green color 3mm 555-560nm led

Item	Symbol	Value	Unit
DC forward current	I_F	20	mA
Pulse forward current	I_FP	100	mA
Power dissipation	P_D	40	mW
Operating temperature	T_opr	-20~+75	°C
Storage temperature	Y_stg	-30~+80	°C
Reverse voltage	V_R	5	V
Sold soldering temperature	T_sol	260°C/3Sec	---

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	1.8	2.0	2.2	V
DC reverse Current	I_R	V=5V	----	----	5	μA
wavelength	Wd	I=20mA	555	----	560	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	I_V	I=20mA	500	----	1000	mcd
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg

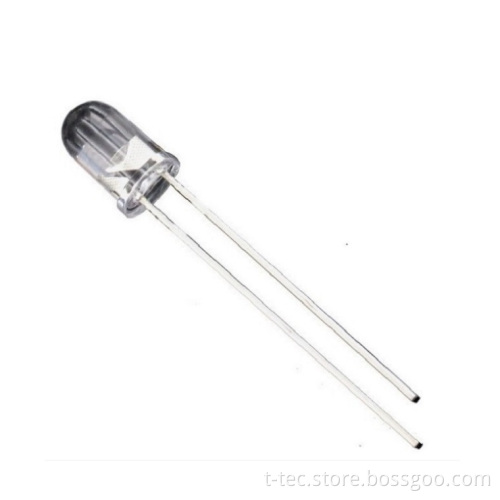

Appearance

Manufacture 555nm Yellow-Green InGaAsP Through-Hole LED Electronic Components

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
