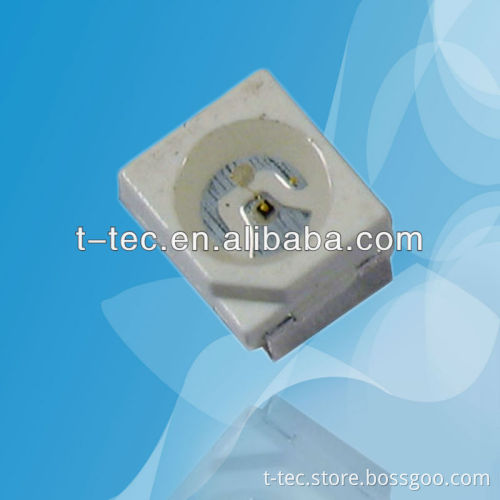

680nm near-infrared 3528 SMD LED

Specifications 680nm near-infrared 3528 SMD LED

volt: 1.8-2.3v 20mA

680nm near-infrared led

also can be DIP type

680nm near-infrared 3528 SMD LED

Item	Symbol	Value	Unit
DC forward current	IF	20	mA
Pulse forward current	IFP	120	mA
Power dissipation	PD	150	mW
Operating temperature	Topr	-20~+75	°C
Storage temperature	Ystg	-30~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---



Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	1.8	2.05	2.5	V
DC reverse Current	IR	V=5V	----	----	5	μA
wavelength	Wp	I=20mA	670	680	690	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	IV	I=20mA	40	----	100	mcd
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg

   size drawing :
