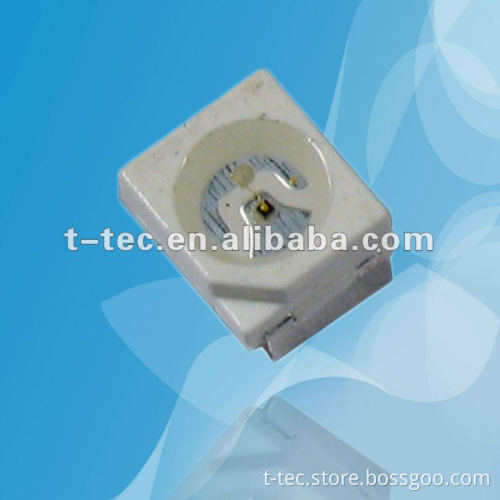

3528 730nm PLCC2 infrared SMD LED

Specifications Lifes pan:30,000h

Peak Wave Length:730nm.

Application:led lighting

     3528 730nm  PLCC2  infrared  SMD LED             applications   directives and backlight for Electronic products Light pipe application Grow light signal transmission of Photoelectric equipment Medical equipment LED special wavelength  light  sources          Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	----	1.75	2.1	V
		IF=50mA	----	1.85	2.2
		IF=100mA,tp=100μs,tp/T=0.01	----	1.9	2.3
DC reverse Current	IR	V=5V	----	----	10	μA
Dome Wavelength	WD	I=20mA	730		740	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	26	----	nm
Radiant power1	Po	I=20mA	1.5	1.9	----	MW
		IF=50mA	4.5	7
Radiant intensity	Ιe	IF=50mA	1.8	2.45		Mw/sr
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg
