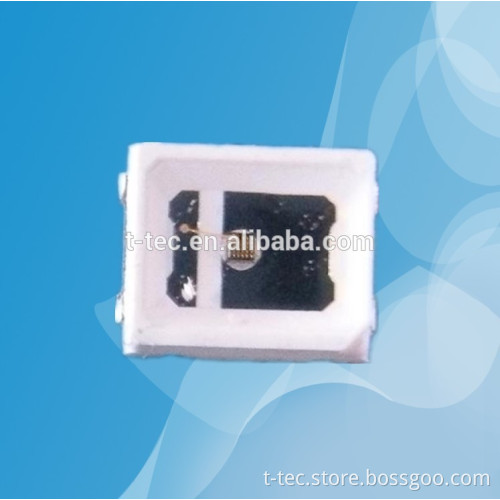

2835 1720nm infrared SMD LED

2835 1720nm infrared SMD LED            Feature                                                                                         1)  water clear type 2) 2835 standard  ,2.8x3.5mm size                               3) wavelength range:1720nm ,invisible light 4) work volt:0.7-0.9v 20mA

Item	Symbol	Value	Unit
DC forward current	IF	20	mA
Pulse forward current	IFP	100	mA
Power dissipation	PD	20	mW
Operating temperature	Topr	-20~+75	℃
Storage temperature	Ystg	-30~+80	℃
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260℃/3Sec	---



Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	0.7	----	0.9	V
DC reverse Current	IR	V=5V	----	----	10	μA
Wavelength	Wλ	I=20mA	----	1720	----	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	50	----	nm
Luminous Intensity	Ee	I=20mA	3		7	Mw
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg

    also have other wavlength, such as 680nm, 700nm,760-770nm,770-780nm,800-810nm,830-840nm,850nm,880nm,900-910nm,1020nm,1050nm,1200nm,1300nm,1450nm,1550nm,1720nm,2000nm,3000nm,4000nm   Appcications:   1)medical facilities. 2)infrared systerm 3)physiotherapeutic instrument   Appearance:       Size drawing :       package   1)for samples,it packaged with pp bag.   2)for large qty,it packaged in reels
