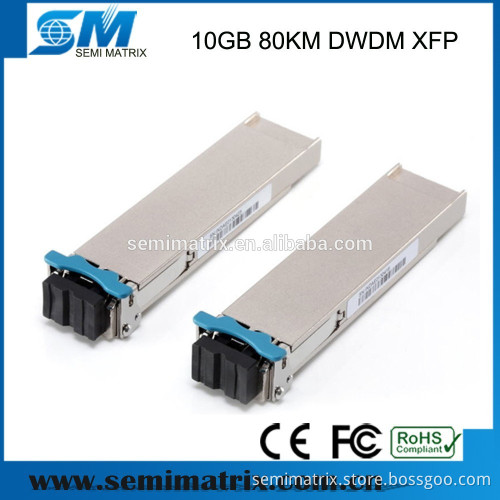

10G 80km DWDM XFP Optical Transceiver module

Specifications -10G DWDM XFP

- link length up to 80km

- Cooled EML and APD receiver

-100GHz channel spacing DWDM system

-XFP MSA Compliant

10G 80km DWDM XFP Optical Transceiver module   Product Description Overview:   Semi Matrix 80KM DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ZR/ZW and 10G Fiber- Channel applications.   The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. F-tone 40KM DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.     Main Features:

1. Wavelength selectable to C-band ITU-T grid	7. DWDM-rated EML transmitter and PIN receiver
2. Suitable for use in 100GHz channel spacing DWDM systems	8. link length up to 80km
3. XFP MSA 4.5 Compliant	9. Low Power Dissipation 3.5W Maximum
4. Data rate from 9.95 Gbps to 11.3Gbps	10. Operating Case Temperature 0°C to 70°C(Standard), -40°C to 85°C (Industrial)
5. No Reference Clock required	11. Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power,  receive optical power
6. Cold Start up Wavelength Compliance	12. RoHS compliant and lead free

      Applications 1. SONET OC-192&SDH STM 64   2. 10GBASE-ER/EW    3. 80 km 10G Fiber Channel    4. DWDM Networks     Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images               Packaging & Shipping       Payment & Warranty We offer 3 year warranty to our products.           Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
8.5G-DWDM-XFP-40	XFP	8.5Gb/s	40km	DWDM Cooled EML	PIN
8.5G-DWDM-XFP-80	XFP	8.5Gb/s	80km	DWDM Cooled EML	APD
10G-DWDM-XFP-40	XFP	10Gb/s	40km	DWDM Cooled EML	PIN
10G-DWDM-XFP-80	XFP	10Gb/s	80km	DWDM Cooled EML	APD
10G-DWDM-XFP-120	XFP	10Gb/s	120km	DWDM Cooled EML	APD

    C-band λc Wavelength Guide:

ITU Channe Product Code	Central Wavelength(nm)	Frequency(THZ)	ITU Channe Product Code	Central Wavelength(nm)	Frequency(THZ)
17	1563.86	191.7
18	1563.05	191.8	40	1545.32	194
19	1562.23	191.9	41	1544.53	194.1
20	1561.42	192	42	1543.73	194.2
21	1560.61	192.1	43	1542.94	194.3
22	1559.79	192.2	44	1542.14	194.4
23	1558.98	192.3	45	1541.35	194.5
24	1558.17	192.4	46	1540.56	194.6
25	1557.36	192.5	47	1539.77	194.7
26	1556.55	192.6	48	1538.98	194.8
27	1555.75	192.7	49	1538.19	194.9
28	1554.94	192.8	50	1537.4	195
29	1554.13	192.9	51	1536.61	195.1
30	1553.33	193	52	1535.82	195.2
31	1552.52	193.1	53	1535.04	195.3
32	1551.72	193.2	54	1534.25	195.4
33	1550.92	193.3	55	1533.47	195.5
34	1550.12	193.4	56	1532.68	195.6
35	1549.32	193.5	57	1531.9	195.7
36	1548.51	193.6	58	1531.12	195.8
37	1547.72	193.7	59	1530.33	195.9
38	1546.92	193.8	60	1529.55	196
39	1546.12	193.9	61	1528.77	196.1
