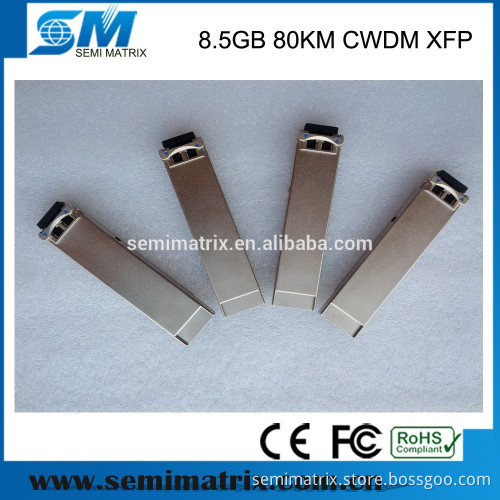

8.5G 80km CWDM XFP Optical Transceiver module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -8.5G CWDM XFP
- link length up to 80km
- CWDM EML transmitter
-1470-1610nm 8 wavelength, 20nm space
-Hot Pluggable with DDM
8.5G 80km CWDM XFP Optical Transceiver module Product Description Overview: Semi Matrix CWDM XFP 80KM Transceiver exhibits excellent wavelength stability, cost effective module. It is designed for serial optical data communications such as 8G Fiber Channel. It supports the 8.5Gbps transmission on 9/125 mm SMF. The transmitter section consists of a CWDM electrical-modulate laser (EML), driver and signal conditioner. The receiver section incorporates a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and signal conditioner. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Main Features:
Applications * Multi-rate 8x/4x/2x Fiber Channel Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Detailed Images
Packaging & Shipping
Payment & Warranty We offer 3 year warranty to our products.
Ordering Information
- link length up to 80km
- CWDM EML transmitter
-1470-1610nm 8 wavelength, 20nm space
-Hot Pluggable with DDM
8.5G 80km CWDM XFP Optical Transceiver module Product Description Overview: Semi Matrix CWDM XFP 80KM Transceiver exhibits excellent wavelength stability, cost effective module. It is designed for serial optical data communications such as 8G Fiber Channel. It supports the 8.5Gbps transmission on 9/125 mm SMF. The transmitter section consists of a CWDM electrical-modulate laser (EML), driver and signal conditioner. The receiver section incorporates a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and signal conditioner. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Main Features: | Up to 8.5 Gb/s Data Link | XFI and Line side Loopback Mode |
| Complaint to XFP MSA | No reference clock required |
| Cooled CWDM EML laser | Low Power Dissipation <3.5W |
| AC/AC Coupling according to MSA | RoHS 6 Compliant |
| Maximum Link Length of 80 km | Case temperature range: -5°C to 70°C |
| 2-Wire Interface for Integrated Digital Diagnostic Monitoring | Duplex LC Connector |
| Compliance with Fiber Channel FC-PI-4 800-SM-LL-L |
Detailed Images
Packaging & Shipping
Payment & Warranty We offer 3 year warranty to our products.
Ordering Information | Part number | Package Style | Data Rate | Distance | LD | PD |
| 8.5G-CWDM-XFP-40 | XFP | 8.5Gb/s | 40km | 1470-1610nm CWDM DFB | PIN |
| 8.5G-CWDM-XFP-80 | XFP | 8.5Gb/s | 80km | 1470-1610nm CWDM DFB | APD |
| 10G-CWDM-XFP-10 | XFP | 10Gb/s | 10km | 1270-1330nm CWDM DFB | PIN |
| 10G-CWDM-XFP-40-A | XFP | 10Gb/s | 40km | 1270-1450nm CWDM DFB | PIN |
| 10G-CWDM-XFP-40-B | XFP | 10Gb/s | 40km | 1470-1610nm CWDM DFB | PIN |
| 10G-CWDM-XFP-60 | XFP | 10Gb/s | 60km | 1270-1450nm CWDM DFB | APD |
| 10G-CWDM-XFP-80 | XFP | 10Gb/s | 80km | 1470-1610nm CWDM DFB | APD |
