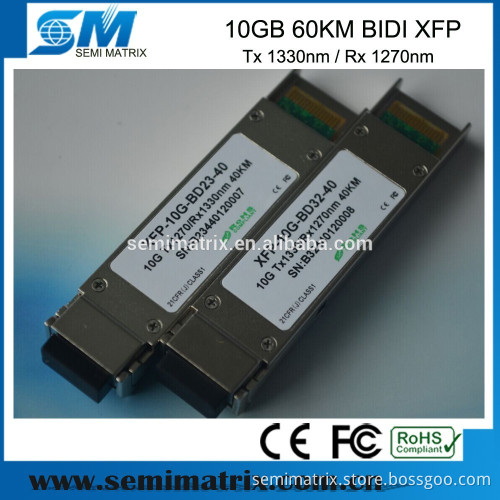

10G 60km Tx1330nm Rx 1270nm BiDi XFP Optical module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -10G BIDI XFP
- link length up to 60km
- DFB laser Transmitter
-1330nm Transmitter & 1270nm Receiver
-Loop Back Support
10G 60km Tx1330nm Rx 1270nm BiDi XFP Optical Transceiver module Product Description Semi Matrix BID XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC
Main Features:
Applications
Detailed Images
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Packaging & Shipping
Ordering Information
- link length up to 60km
- DFB laser Transmitter
-1330nm Transmitter & 1270nm Receiver
-Loop Back Support
10G 60km Tx1330nm Rx 1270nm BiDi XFP Optical Transceiver module Product Description Semi Matrix BID XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC
Main Features: | Supports 9.95Gb/s to 10.5Gb/s bit rates | +3.3V,+1.8V power supply |
| Hot-pluggable XFP footprint | Power dissipation <2W |
| Maximum link length of 60km with SMF | Compatible with RoHS |
| 1270/1330nm DFB laser Transmitter and 1330/1270nm Receiver | Built-in digital diagnostic functions |
| XFP MSA package with LC connector | Temperature range 0°C to 70°C |
| No reference clock required | Standard bail release mechanism |
| Loop Back Support. |
| 10GBASE-BX at 10.3125Gbps |
| 10GBASE-BX at 9.953Gbps |
| 10GBASE-BX 10G Ethernet |
| SONET OC-192 &SDH STM I-64.1 |
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Packaging & Shipping
Ordering Information | Part number | Package Style | Data Rate | Distance | LD | PD |
| 10G-BIDI-XFP-27-10 | XFP | 10Gb/s | 10km | 1270nm DFB | PIN |
| 10G-BIDI-XFP-33-10 | XFP | 10Gb/s | 10km | 1330nm DFB | PIN |
| 10G-BIDI-XFP-27-20 | XFP | 10Gb/s | 20km | 1270nm DFB | PIN |
| 10G-BIDI-XFP-33-20 | XFP | 10Gb/s | 20km | 1330nm DFB | PIN |
| 10G-BIDI-XFP-27-40 | XFP | 10Gb/s | 40km | 1270nm DFB | PIN |
| 10G-BIDI-XFP-33-40 | XFP | 10Gb/s | 40km | 1330nm DFB | PIN |
| 10G-BIDI-XFP-27-60 | XFP | 10Gb/s | 60km | 1270nm DFB | PIN |
| 10G-BIDI-XFP-33-60 | XFP | 10Gb/s | 60km | 1330nm DFB | APD |
