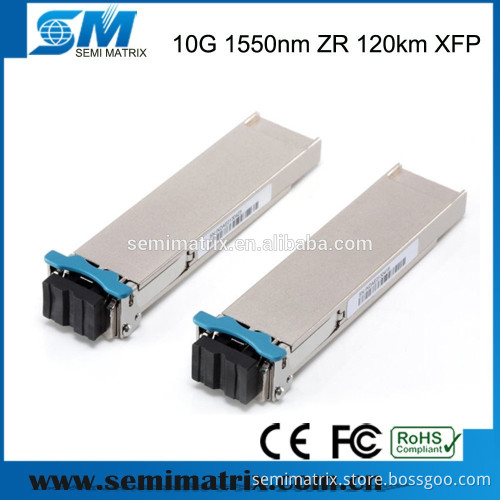

10G ZR 1550nm 120KM XFP Optical Transceiver

Specifications -10G ZR XFP

-1550nm EML

-Up to 120KM Distance

-Built-in digital diagnostic

-RoHS-6 compliant (lead-free)

10G ZR 1550nm 120KM XFP Optical Transceiver   Product Description   Semi Matrix 10G-XFP-ZR-120 is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-ZR) , and transmission distance up to 120KM on SMF.
The transceiver module comprises a transmitter with 1550nm a EML and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10G systems. Main Features

* Hot-pluggable XFP footprint	* XFI Loopback Mode
* Supports 9.95Gbps to 11.1Gbps	* Low Power Dissipation 2.5W Maximum
* Maximum link length of 120KM	* No Reference Clock required
* 1550nm cooled EML and APD receiver	* Built-in digital diagnostic functions
* XFP MSA Rev 4.5 Compliant	* RoHS-6 compliant (lead free)
* Standard bail release mechanism	* Case Temperature range 0°C to 70°C

  Applications *  SONET OC-192&SDH STM 64 (with/with out FEC)   * 10GBASE-ZR/ZW 10G Ethernet    * 10G Fiber Channel
* Other optical transmission systems Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.     Detailed Images                 Packaging & Shipping       Payment & Warranty We offer 3 years warranty to our products.             Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
8.5G-XFP-SR	XFP	8.5Gb/s	300m	850nm VSCEL	PIN
8.5G-XFP-LR-2	XFP	8.5Gb/s	2km	1310nm FP	PIN
10G-XFP-SR	XFP	10Gb/s	300m	850nm VSCEL	PIN
10G-XFP-LR-10	XFP	10Gb/s	10km	1310nm DFB	PIN
10G-XFP-ER-40	XFP	10Gb/s	40km	1550nm Cooled EML	PIN
10G-XFP-ZR-80	XFP	10Gb/s	80km	1550nm Cooled EML	APD
10G-XFP-ZR-120	XFP	10Gb/s	120km	1550nm Cooled EML	APD
