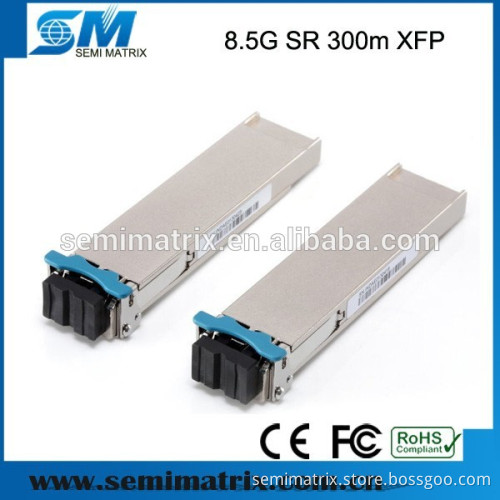

8.5G SR 850nm 300M XFP Optical Transceiver

Specifications -8.5G SR XFP

-850nm VCSEL laser

-Up to 300M Distance

-Built-in digital diagnostic

-RoHS-6 compliant (lead-free)

8.5G SR 850nm 300M XFP Optical Transceiver   Product Description   Semi Matrix 8.5G-XFP-SR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 8.5G, and transmission distance up to 300m on 50μm MMF (2000MHz.km).
The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10G systems.   Main Features

* Hot-pluggable XFP footprint	* XFI Loopback Mode
* Supports 8.5Gbps Data links	* Low Power Dissipation 1.5W Maximum
* Maximum link length of 300m	* No Reference Clock required
* 850nm VCSEL laser and PIN receiver	* Built-in digital diagnostic functions
* Compliant with FC-Pi-4 800-M5/M6/M5E-LC-I	* RoHS-6 compliant (lead free)
* Standard bail release mechanism	* Case Temperature range -5°C to 70°C

  Applications   * Multi-rate 8x/4x/2x Fiber Channel
* Other optical transmission systems Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.     Detailed Images                         Packaging & Shipping       Payment & Warranty We offer 3 years warranty to our products.             Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
8.5G-XFP-SR	XFP	8.5Gb/s	300m	850nm VSCEL	PIN
8.5G-XFP-LR-2	XFP	8.5Gb/s	2km	1310nm FP	PIN
10G-XFP-SR	XFP	10Gb/s	300m	850nm VSCEL	PIN
10G-XFP-LR-10	XFP	10Gb/s	10km	1310nm DFB	PIN
10G-XFP-ER-40	XFP	10Gb/s	40km	1550nm Cooled EML	PIN
10G-XFP-ZR-80	XFP	10Gb/s	80km	1550nm Cooled EML	APD
10G-XFP-ZR-120	XFP	10Gb/s	120km	1550nm Cooled EML	APD
