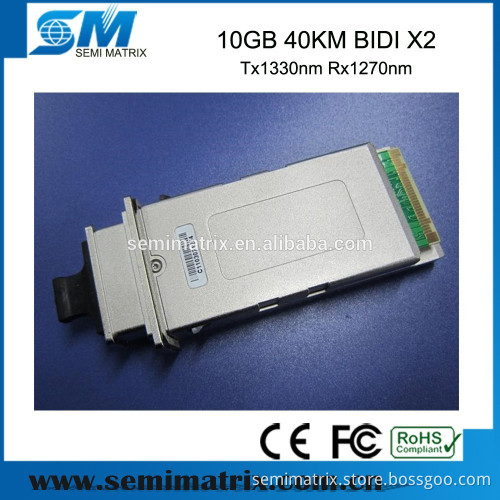

10G 40KM Tx1330nm Rx 1270nm BIDI X2 Optical Transceiver module

Specifications -10G BIDI X2

- link length up to 40km

-Uncooled DFB laser, PIN receiver

-1270nm & 1330nm wavelength

-10GBASE-ER Application

10G 10km Tx1330nm Rx1270nm BIDI X2 Optical Transceiver module   Product Description Overview:   Semi Matrix 10Gb/s X2 transceiver module  is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA.   This is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver,XAUI interface,Mux and Demux with clock and data recovery(CDR).   This transceiver line uses an uncooled 1330nm / 1270nm DML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae.       Main Features:   1. XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s
2. Uncooled 1330nm/1270nm DFB laser and PIN receiver
3. Hot Z-Pluggable
4. SC-Duplex Optical Receptacle
5. MDIO, DOM Support
6. Compliant to X2 MSA
7. Compliant to IEEE 802.3ae 10GBASE-ER Application
8. Case operating temperature: 0 to 70 °C
9. RoHS6 compliant and lead free      Applications: IEEE 802.3ae as 10GBASE-ER, X2 MSA Release1.0B     Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required.   We supply the suitable Optical Solution according to your requirements, and design  the label and packaging as you need.   Welcome any inquiry of customized products and service.     Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images             Packaging & Shipping       Payment & Warranty We offer 3 year warranty to our products.             Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
10G-BIDI-X2-27-10	X2	10Gb/s	10km	1270nm DFB	PIN
10G-BIDI-X2-33-10	X2	10Gb/s	10km	1330nm DFB	PIN
10G-BIDI-X2-27-40	X2	10Gb/s	40km	1270nm DFB	PIN
10G-BIDI-X2-33-40	X2	10Gb/s	40km	1330nm DFB	PIN
