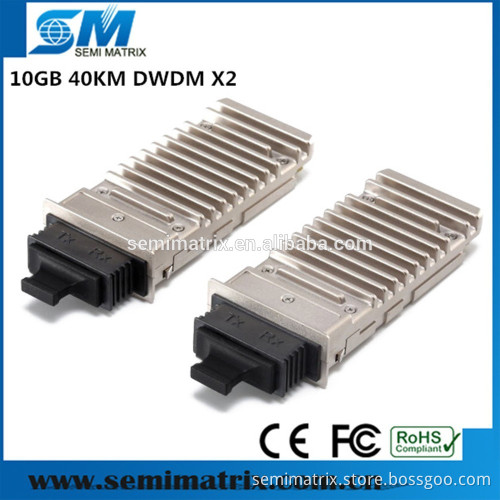

10G 40km DWDM X2 Optical Transceiver module

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications -10G DWDM X2

- link length up to 40km

-Cooled DWDM EML

-4 Lanes @ 3.125Gbit/s

-SC-Duplex, Compliant to X2 MSA

10G 40km DWDM X2 Optical Transceiver module Product Description Overview: Semi Matrix Dense Wavelength-Division Multiplexing (DWDM) X2 pluggable module allows enterprise companies and service providers to offer scalable and easy-to-deploy 10 Gigabit Ethernet services in their networks. Both DWDM X2 ER 40km and DWDM X2 ZR 80km are available for DWDM 10G Ethernet application, DWDM grid 100Ghz. DWDM XENPAK are available on XENPAK to SFP+ converter and DWDM SFP+. More and more customers prefer DWDM X2 based on X2 to SFP+ converter and DWDM SFP+. Can be used with single fiber DWDM system and dual fiber DWDM system

Main Features: 1. X2 MSA Compliant
2. 70-PIN connector
3. SC duplex receptacle package
4. Wavelength selectable to C-band ITU-T grid wavelengths
5. Cooled DWDM EML
6. Power supply: +5.0 V, +3.3 V, APS:+1.2 V
7. Power Dissipation 4W Maximum
8. 0ºC to 70ºC Operating Case Temperature
9. Digital Diagnostic Monitoring
10. Management and control with MDIO 2-wire bus
11. XAUI electrical interface 4 x 3.125 Gb/s Ethernet
12. ≤40km ER(Extended Range)10GBE
13. RoHS6 compliant and lead free Applications: 10 Gb/s Ethernet transmission systems Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required. We supply the suitable Optical Solution according to your requirements, and design the label and packaging as you need. Welcome any inquiry of customized products and service. Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
