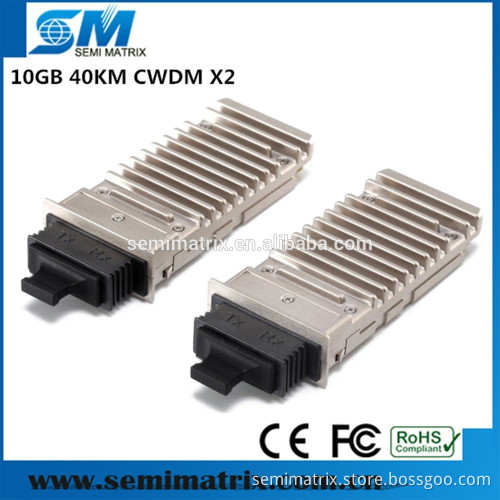

10G 40km CWDM X2 Optical Transceiver module

Specifications -10G CWDM X2

- link length up to 40km

- Cooled CWDM DFB laser

-1470nm to 1610nm

-SC-Duplex, Compliant to X2 MSA

10G 10km CWDM X2 Optical Transceiver module   Product Description Overview:   Semi Matrix 10Gb/s X2 transceiver module is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA.   It is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery(CDR).
This version of X2 transceiver line uses an cooled CWDM EA-DFB LD: 1470nm to 1610nm Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae     Main Features:   1. X2 MSA Compliant   2. 70-PIN connector
3. SC duplex receptacle package
4. Wavelength selectable to ITU-T standards covering
5. CWDM grid wavelengths
6. UnCooled CWDM DFB 1470-1610nm
7. Power supply: +5.0 V, +3.3 V, APS:+1.2 V
8. Power Dissipation 4W Maximum
9. 0ºC to 70ºC Operating Case Temperature   10 Digital Diagnostic Monitoring
11. Management and control with MDIO 2-wire bus
12. XAUI electrical interface 4 x 3.125 Gb/s Ethernet
13. ≤40km ER(Extended Range)10GBE
14. RoHS6 compliant and lead free      Applications: 10 Gb/s Ethernet transmission systems     Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required.   We supply the suitable Optical Solution according to your requirements, and design  the label and packaging as you need.   Welcome any inquiry of customized products and service.     Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images             Packaging & Shipping       Payment & Warranty We offer 3 year warranty to our products.           Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
10G-CWDM-X2-10	X2	10Gb/s	10km	1270-1450nm CWDM DFB	PIN
10G-CWDM-X2-40	X2	10Gb/s	40km	1470-1610nm CWDM DFB	PIN
10G-CWDM-X2-80	X2	10Gb/s	80km	1470-1610nm CWDM DFB	APD
