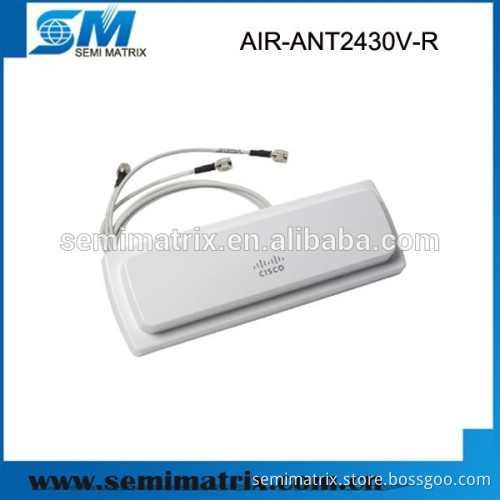

Aironet 3-dBi Omnidirectional Antenna AIR-ANT2430V-R

Specifications -AIR-ANT2430V-R

-indoor 2.4GHz

-3 dBi

-Omnidirectional

-1 year warranty

Cisco Aironet 3-dBi Omnidirectional Antenna AIR-ANT2430V-R   Product Description    This document outlines the specifications, describes the AIR-ANT2430V-R 3-dBi omnidirectional antenna, and provides instructions for mounting it. The antenna operates in the 2.4-GHz frequency range and is designed for use in an indoor office environment. The antenna assembly consists of three radiating elements, each fed with its own coaxial cable.   Specifications AIR-ANT2430V-R

Antenna type	Omnidirectional
Operating frequency range	2402 - 2485 MHz
VSWR	< 2:1
Nominal input impedance	50 ohms
Peak gain	3 dBi
Polarization	Linear
E-plane 3 dBi beamwidth	60 degrees
H-plane 3 dBi beamwidth	Omnidirectional
Front-to-back ratio	10 dB
Length	12.1 in. (30.7 cm)
Width	4.2 in. (10.6 cm)
Height	1.6 in. (4.0 cm)
Cable length and type	36 in. (91.4 cm) Plenum rated, UV stable
Connector type	RP-TNC plug
Operating temperature	32 F - 131 F
	(0 C - 55 C)
Environment	Indoor office only
