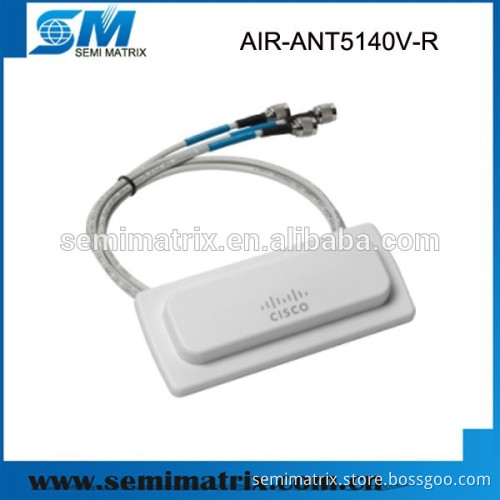

Aironet 4-dBi Omnidirectional Antenna AIR-ANT5140V-R

Specifications -AIR-ANT5140V-R

-indoor office only

-4 dBi

-Omnidirectional

-1 year warranty

Cisco Aironet 4-dBi Omnidirectional Antenna   AIR-ANT5140V-R   Product Description    The antenna is designed specifically for use with pre-802.11n and 802.11n 3-antenna access points. The antenna operates in the 5-GHz frequency range and is designed for use only in an indoor office environment. The antenna assembly consists of three radiating elements, each fed with its own coaxial cable.   Specifications AIR-ANT5140V-R

Antenna type	Omnidirectional, indoor office only
Operating frequency range	4900 - 5850 MHz
Nominal input impedance	50 ohms
1.5:1 VSWR bandwidth	4900 - 5850 MHz
Peak gain	4 dBi
Polarization	Linear
E-plane 3 dB beamwidth	45 degrees
H-plane 3 dB beamwidth	Omnidirectional
Front-to-back ratio	10 dB
Length	6.9 in. (17.5 cm)
Width	3 in. (7.6 cm)
Height	< 1 in (< 2.5 cm)
Cable length and type	36 in. (91.4 cm) Plenum rated, UV stable
Operating temperature	32 F - 131 F
	(0 C - 55 C)
Antenna A Elevation and Azimuth Pattern
Antenna C Elevation and Azimuth Pattern
Antenna B Elevation and Azimuth Pattern

              Payment & Warranty We offer 3 years warranty to our products.           Packaging & Shipping  Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.                   Ordering Information Some Antennas :

AIR-ANT2524DG-R	AIR-ANT5140V-R
AIR-ANT2524DB-R	AIR-ANT24120
AIR-ANT2524DW-R	AIR-ANT2422DB-R
AIR-ANT5135DW-R	AIR-ANT2422DW-R
AIR-ANT5135DB-R	AIR-ANT2422DG-R
AIR-ANT5135DG-R	AIR-ANT2430V-R
AIR-ANT5135D-R	AIR-ANT1728
AIR-ANT5140NV-R	AIR-ANT4941
