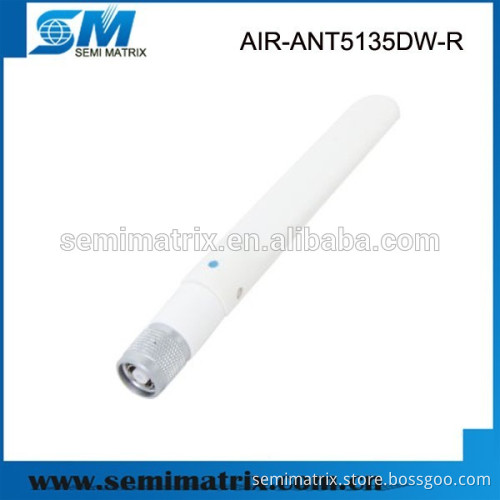

Aironet 3.5-dBi Articulated Dipole Antenna AIR-ANT5135DW-R

Specifications -AIR-ANT5135DW-R

-indoor 5GHz

-3.5 dBi

-white color

-1 year warranty

Cisco Aironet 3.5-dBi Articulated Dipole Antenna  AIR-ANT5135DW-R   Product Description   Cisco Aironet 3.5-dBi Articulated Dipole Antenna. The antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet 5-GHz radio products using an RP-TNC connector.   Specifications AIR-ANT5135DW-R

Antenna type	Dipole
Operating frequency range	5150 - 5850 MHz
Nominal input impedance	50W
2:1 VSWR bandwidth	5150 - 5850 MHz
Gain	3.5 dBi
Polarization	Linear, vertical
E-plane 3-dB beamwidth	40 degrees
H-plane 3-dB beamwidth	Omnidirectional
Connector type	RP-TNC plug
Length	5.3 in. (13.4 cm)
Radome length	3.4 in. (8.6 cm)
Width	0.62 in. (1.5 cm)
Operating temperature	-22°F - 158°F (-30°C - 70°C)
Storage temperature	-40°F - 185°F (-40°C - 85°C)
Environment	Indoor, office
H-Plane Pattern		E-Plane Pattern

      Payment & Warranty We offer 3 years warranty to our products.           Packaging & Shipping   Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.                 Ordering Information Some Antennas :
