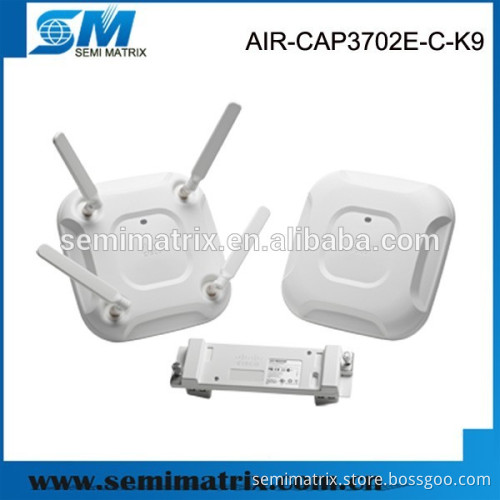

Aironet 3700 Series Access Point AIR-CAP3702E-C-K9

Specifications - AIR-CAP3702E-C-K9

-controller-based access point

-2.4 GHz, 5 GHz, indoor

-512 DRAM 64 FLASH POE

- 802.11a/g/n/ac

Cisco Aironet 3700E Access Point: Indoor environments with EXternal antennas AIR-CAP3702E-C-K9   Product Description   Product Overview   With the industry’s only enterprise class 4x4 MIMO, three-spatial-stream access points that support the IEEE’s new 802.11ac specification, the Cisco Aironet 3700 Series delivers industry-leading performance and a High Density Experience (HD Experience) for both the enterprise and service provider markets. The Aironet 3700 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support.   In its first implementation, 802.11ac wave 1 provides a rate of up to 1.3 Gbps, roughly triple the rates offered by today’s high-end 802.11n access points. This provides the necessary foundation for enterprise and service provider networks alike to stay ahead of the performance and bandwidth expectations and needs of their wireless users.   Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down user’s day-to-day work, but should enable a high-performance experience while allowing users to move freely around the corporate environmen      Specifications AIR-CAP3702E-C-K9

GENERAL
Device Type	Radio access point
Width	22.1 cm
Depth	22.1 cm
Height	5.4 cm
Weight	1.14 kg
PROCESSOR / MEMORY / STORAGE
DRAM	512 MB
Flash Memory	64 MB
NETWORKING
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	450 Mbps
Line Coding Format	CCK
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band	2.4 GHz, 5 GHz
Status Indicators	Status
Features	Auto-sensing per device, power over Ethernet (PoE), MIMO technology, Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC)
Encryption Algorithm	AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
Authentication Method	MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards	IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11n
AERIAL
Antenna	External
Directivity	Omni-directional
EXPANSION / CONNECTIVITY
Interfaces	1 x 1000Base-T - RJ-45
	1 x management - RJ-45
MISCELLANEOUS
Mounting Kit	Included
Compliant Standards	VCCI, ICES-003, EN 300.328, EN 301.489.1, EN 301.489.17, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, EN 301.893, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, CAN/CSA C22.2 No. 60950-1
POWER
Power Over Ethernet (PoE) Supported	PoE
Power Device	External power adapter
Voltage Required	AC 120/230 V ( 50/60 Hz )
MANUFACTURER WARRANTY
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - lifetime
	Limited warranty - advance parts replacement - 10 days
ENVIRONMENTAL PARAMETERS
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% (non-condensing)

        Packaging & Shipping   Cisco ORIGINAL NEW IN BOX WITH EXTRA PROTECTION.                      Payment & Warranty We offer 3 years warranty to our products.
