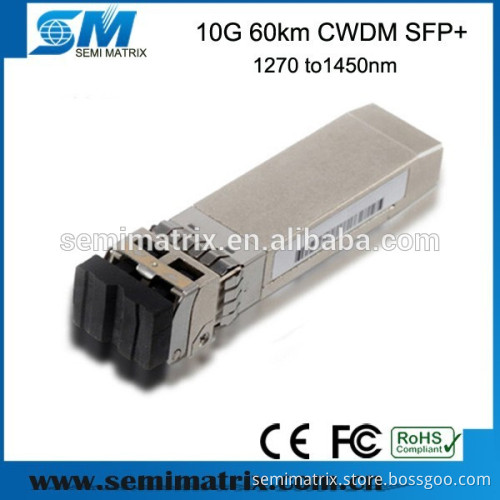

10G 60km 1270-1450nm CWDM SFP+ Optical Transceiver module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -10G CWDM SFP+
- link length up to 60km
- CWDM EML transmitter / APD
-1270 to 1450nm wavelengths
-Hot Pluggable, DDM
10G 60km 1270-1450nm CWDM SFP+ Optical Transceiver module Product Description This CWDM SFP+ Transceiver is a “Limiting module”, designed for 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a coled EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Main Features
Applications: 1. 10GBASE-ER at 10.3125Gbps
2. 10G Ethernet
3. Other optical links Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Detailed Images
Packaging & Shipping
Payment & Warranty We offer 3 year warranty to our products.
Ordering Information
- link length up to 60km
- CWDM EML transmitter / APD
-1270 to 1450nm wavelengths
-Hot Pluggable, DDM
10G 60km 1270-1450nm CWDM SFP+ Optical Transceiver module Product Description This CWDM SFP+ Transceiver is a “Limiting module”, designed for 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a coled EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Main Features | 1. 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR | 6.Electrical interface compliant to SFF-8431 |
| 2.Uncooled CWDM EML LD 1270-1450nm | 7.2-wire interface for management |
| 3. Duplex LC connector | 8. Specifications compliant with SFF 847 |
| 4.Up to 60km transmission | 9. Single 3.3V power supply |
| 5. Metal enclosure, for lower EMI | 10. Case operating temperature range: -5°C to 70°C |
| 11. RoHS6 compliant (lead free) | 12. Class 1 Laser International Safety Standard IEC-60825 complian |
2. 10G Ethernet
3. Other optical links Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Detailed Images
Packaging & Shipping
Payment & Warranty We offer 3 year warranty to our products.
Ordering Information | Part number | Package Style | Data Rate | Distance | LD | PD |
| 8.5G-CWDM-SFP-10 | SFP+ | 8.5Gb/s | 10km | 1270-1330nm CWDM DFB | PIN |
| 8.5G-CWDM-SFP-20 | SFP+ | 8.5Gb/s | 20km | 1270-1330nm CWDM DFB | PIN |
| 8.5G-CWDM-SFP-40 | SFP+ | 8.5Gb/s | 40km | 1470-1610nm CWDM DFB | PIN |
| 8.5G-CWDM-SFP-80 | SFP+ | 8.5Gb/s | 80km | 1470-1610nm CWDM DFB | APD |
| 10G-CWDM-SFP-10 | SFP+ | 10Gb/s | 10km | 1270-1450nm CWDM DFB | PIN |
| 10G-CWDM-SFP-20 | SFP+ | 10Gb/s | 20km | 1270-1450nm CWDM DFB | PIN |
| 10G-CWDM-SFP-40-A | SFP+ | 10Gb/s | 40km | 1270-1450nm CWDM DFB | PIN |
| 10G-CWDM-SFP-40-B | SFP+ | 10Gb/s | 40km | 1470-1610nm CWDM EML | PIN |
| 10G-CWDM-SFP-60 | SFP+ | 10Gb/s | 60km | 1270-1450nm CWDM DFB | APD |
| 10G-CWDM-SFP-80 | SFP+ | 10Gb/s | 80km | 1470-1610nm CWDM DFB | APD |
