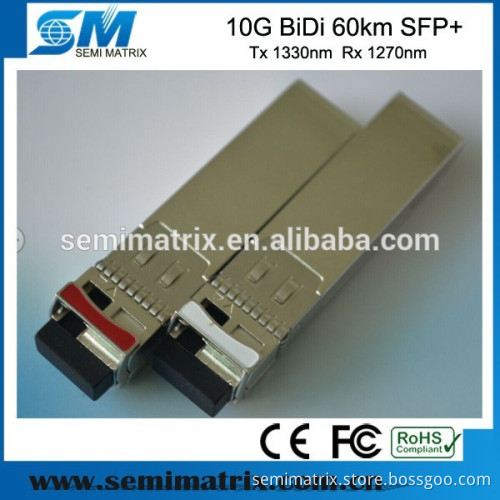

10G Tx1330nm Rx1270nm 60KM BIDI SFP+ Optical Transceiver Module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -10G BIDI SFP+
-60KM Reach distance
-Tx 1330 / 1270nm wavelength
-RoHS compliant and Lead Free
-All Brands compatible
10G Tx1330nm Rx1270nm 60KM BIDI SFP+ Optical Transceiver Module Product Description BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Main Features
Applications:
Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Detailed Images
Packaging & Shipping
Payment & Warranty We offer 3 years warranty to our products.
Ordering Information
-60KM Reach distance
-Tx 1330 / 1270nm wavelength
-RoHS compliant and Lead Free
-All Brands compatible
10G Tx1330nm Rx1270nm 60KM BIDI SFP+ Optical Transceiver Module Product Description BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Main Features | 1. Simplex LC Connector Bi-Directional SFP+ Optical Transceiver | 7. Fully Compliant with SFP+ MSA SFF-8431 |
| 2. Up to 10.3 Gbps Bi-directional Data Links | 8. Compliant to IEEE 802.3ae 10GBASE-BX |
| 3. Only Required +3.3 V Power Supply | 9. SFF-8472 Digital Diagnostic Function |
| 4. Up to 60km on 9/125um SMF | 10. RoHS Compliant and Lead Free |
| 5. A:1270nm DFB Laser transmitter,1330nm receiver B:1330nm DFB Laser transmitter,1270nm receiver | 11. Operating case temperature: Standard: 0 ~ 70 °C |
| 6. Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW |
| 10GBASE-BX at 10.3125 Gb/s | |
| 10GBASE-BX at 9.953 Gb/s | Other Optical Links |
Detailed Images
Packaging & Shipping
Payment & Warranty We offer 3 years warranty to our products.
Ordering Information | Part number | Package Style | Data Rate | Distance | LD | PD |
| 10G-BIDI-SFP-27-10 | SFP+ | 10Gb/s | 10km | 1270nm DFB | PIN |
| 10G-BIDI-SFP-33-10 | SFP+ | 10Gb/s | 10km | 1330nm DFB | PIN |
| 10G-BIDI-SFP-27-20 | SFP+ | 10Gb/s | 20km | 1270nm DFB | PIN |
| 10G-BIDI-SFP-33-20 | SFP+ | 10Gb/s | 20km | 1330nm DFB | PIN |
| 10G-BIDI-SFP-27-40 | SFP+ | 10Gb/s | 40km | 1270nm DFB | PIN |
| 10G-BIDI-SFP-33-40 | SFP+ | 10Gb/s | 40km | 1330nm DFB | PIN |
| 10G-BIDI-SFP-27-60 | SFP+ | 10Gb/s | 60km | 1270nm DFB | PIN |
| 10G-BIDI-SFP-33-60 | SFP+ | 10Gb/s | 60km | 1330nm DFB | APD |
